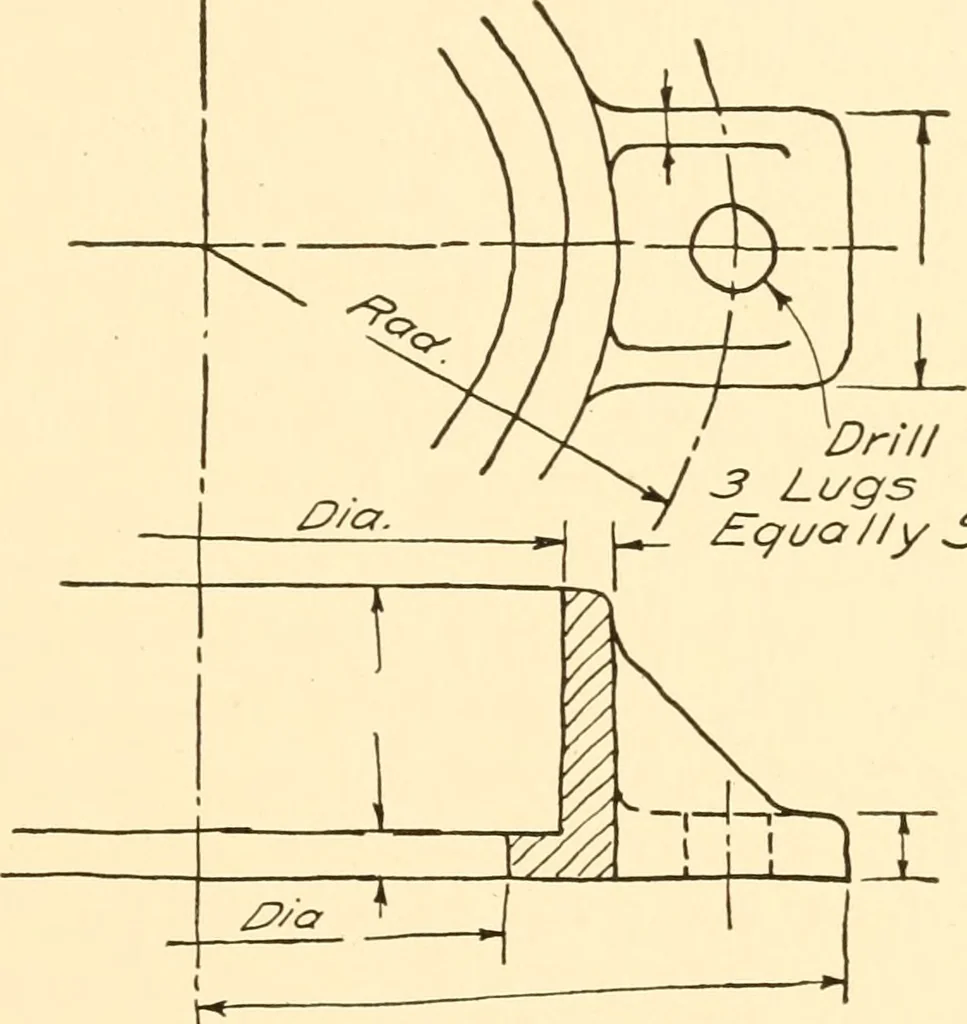

machines will carry themanufacturers name and identification, sometimes stamped intothe machine, and sometimes on a name plate. The informationgiven in this manner should always be noted in connection withthe sketch. Sometimes parts are either right or left hand, andthis fact should be noted. It is… … 104 ESSENTIALS OF DRAFTING WZZL ^^^77^ assembling (Figs. 267 and 268). Oftentimes the top or bottomof a part should be marked. Where a number of bolts are usedwith reamed holes they are often numbered or otherwise marked(both bolt holes and bolts, Fig. 269). Very often part views may be used to…
