Mechanical drawing problems for high schools, normal schools and vocational schools (1918)
Berg, Edward. [from old catalog], Kronquist, Emil F. (Emil Fritjoff), b. 1882 · Peoria, Ill. : The Manual arts press · leaf 62

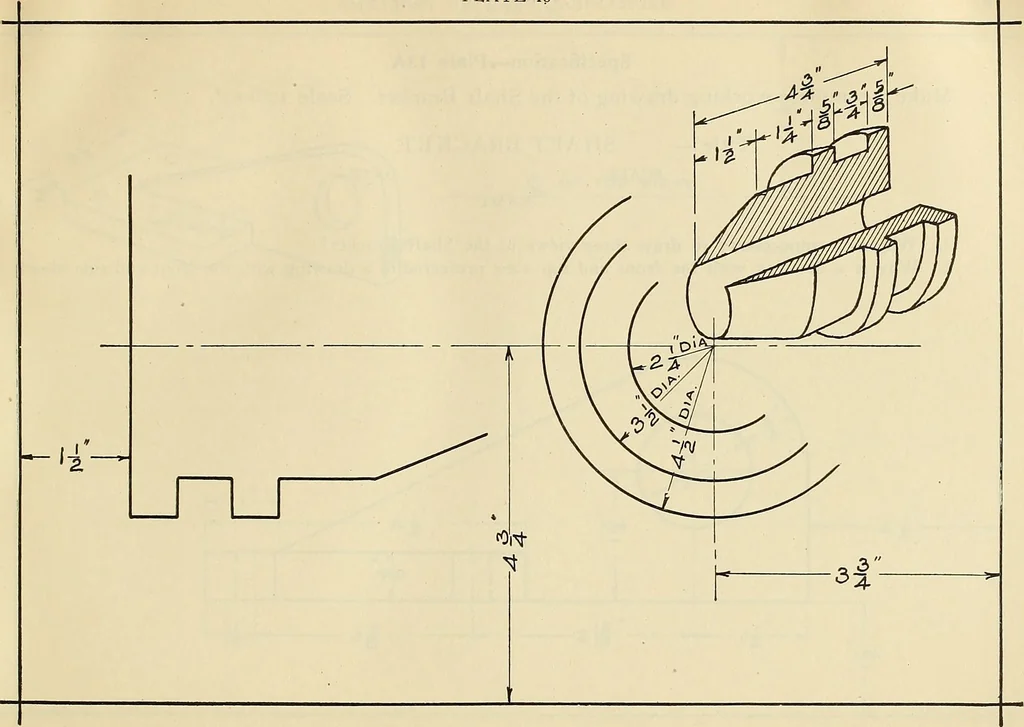

can be read and interpreted morseasily. A dimension should never be placed on a center line and should never be crowded into aspace which is too narrow for the figures. 1. When the drawing of an object involves many circles, where should the diameter dimensions beplaced ? Why ? 2. \\hy slioulfl… … 60 MECHANICAL DRAWING PROBLEMS Specification—Plate 13 A.Make a complete working drawing of the Shaft Bracket. Scale 12=:. Title:— SHAFT BRACKET SCALE DATE NAME 1. Why is it unnecessary to draw three views of the Shaft Bracket? 2. Why is a drawing with the front and top view preferred to a drawing…
