Essentials of drafting; a text and problem book for apprentice, trade and evening technical schools (1918)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 125

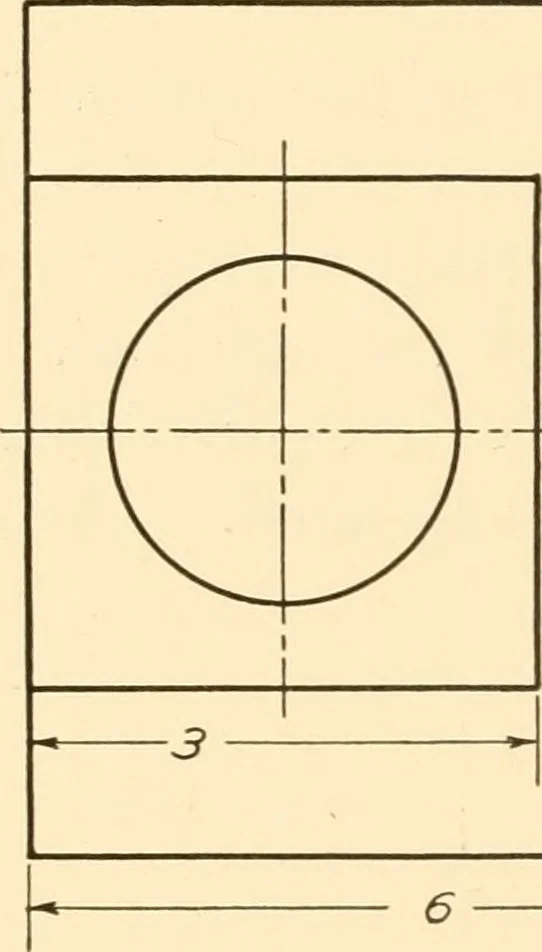

r/g. sr^ … •^ f^ L A c B Fig. 2 75 In Fig. 275 the volume would be found as tabulated, in whichthe A and B are called plus (+) volumes and C is called a minus(—) volume. Designation Part Dimension Volume in Cubic Inches + - A Square prism 3x3 x2V2 22.5 B Rectangular plate 5x6x1 30. C Cylinder 1 X 3.1416 x3…
Mechanical drawing
