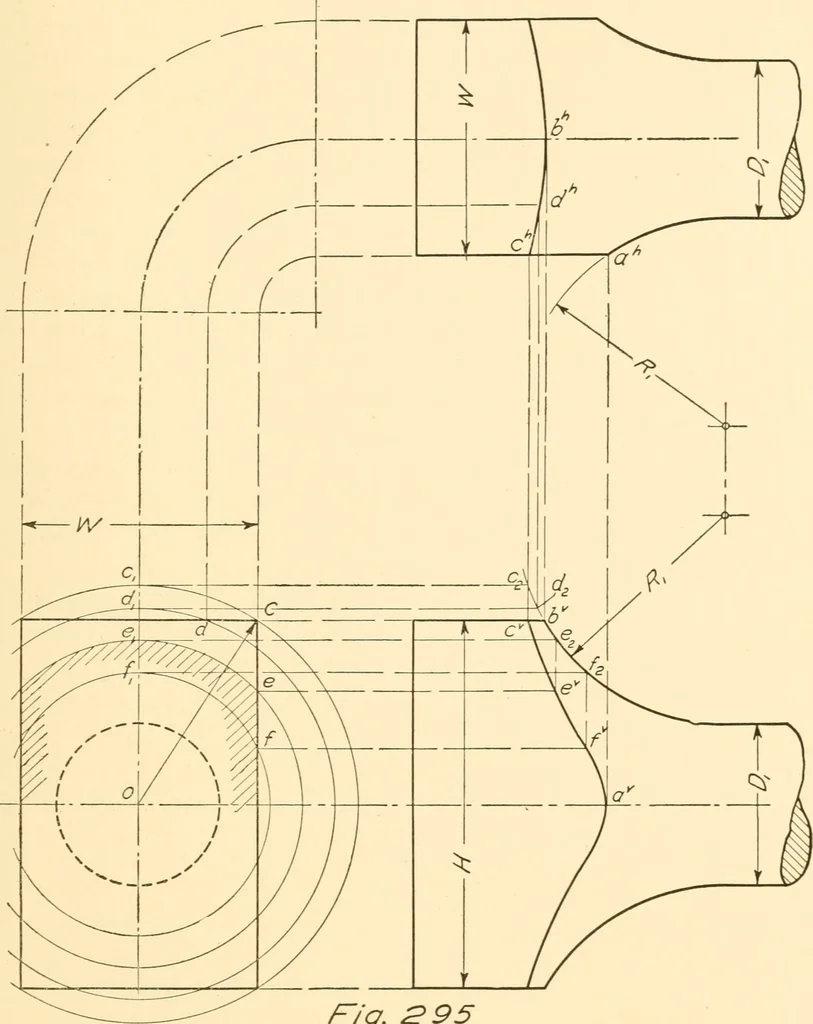

rallel) on the same plane intersect in points whichare common to both surfaces and are therefore points in thecurve of intersection. The intersection between surfaces canvery often be found by horizontal cutting planes, as indicated INTERSECTIONS 121 in Fig. 293, which would be employed for the… … r/g. 295 as shown in the top view. Where the line and the circle cross isa point common to the prism and the cone. Other points foundin the same way will complete the curve of intersection. Connecting Rod Intersection. — Fig. 295 shows a portion of aconnecting rod of circular cross section with a…
