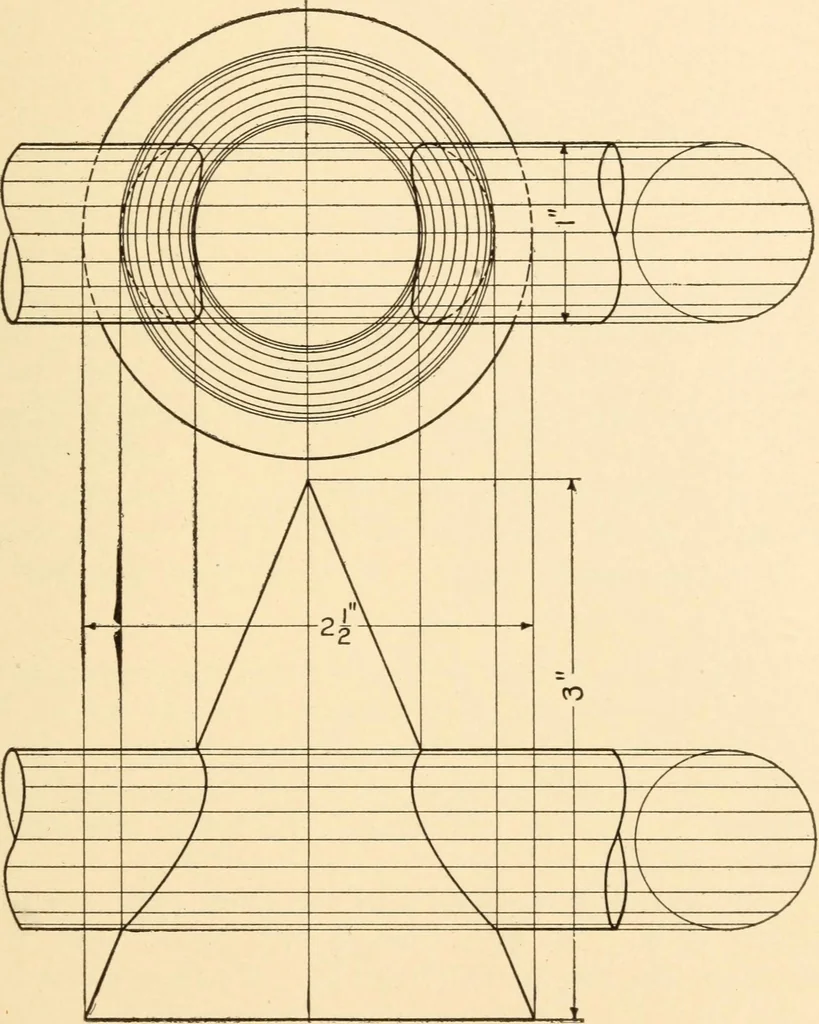

ch plane cuts a circle from thecone and two elements from the cylinder. This is anillustration of a conical hopper connecting with a cyl-indrical pipe, or a gutter drip and rain-water pipe, asseen on many houses. MECHANICAL DRAWING 113 Problem 4,—A vertical pyramid 4 high, with a tri-angular base,… … Fig. 116 114 A PRACTICAL COURSE IN of the pyramid. The axis of the prism is 1^4 abovethe base. Draw three views full size, find the line ofpenetration and develop both objects. Figs. 117, 118and 119.
