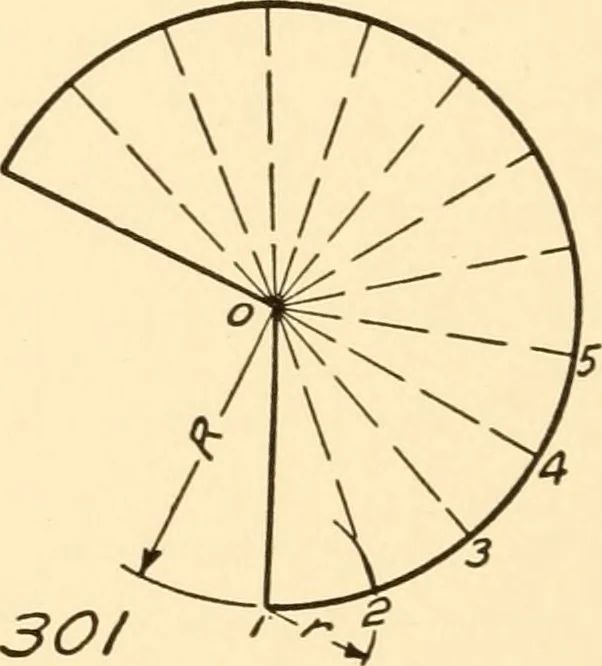

r/g. 30/ … bottom of the prism may be obtained from the top view andadded to the lateral surface. Development of a Cylinder. — The development of a cyHnderwas illustrated in Fig. 297. One half of a square elbow is de-veloped in Fig. 299. First divide the top view into a number ofequal parts. Through each…
