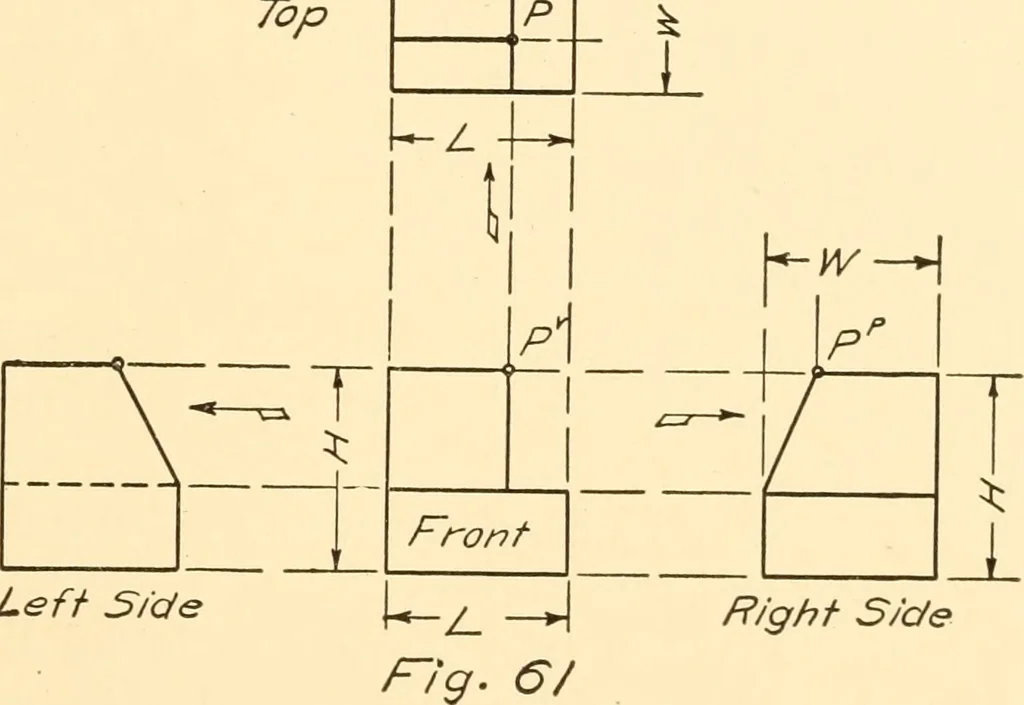

one side of the ^^P object, and per-pendicular to theother two planes,as shown in Fig. 60, a side viewmay be obtained.The plane con-taining this sideview can be re-volved about theaxis shown untilit is in the same plane with the vertical plane. This brings theside view on the same line with the… … Left 3/de Right Side 26 ESSENTIALS OF DRAFTING Note the three views of the point P in Figs. 59, 60, and 61.Locate other points in the same manner until all points on theobject are accounted for in each of the three views. Horizontal distances (as L) show the same in the top andfront views. Vertical…
