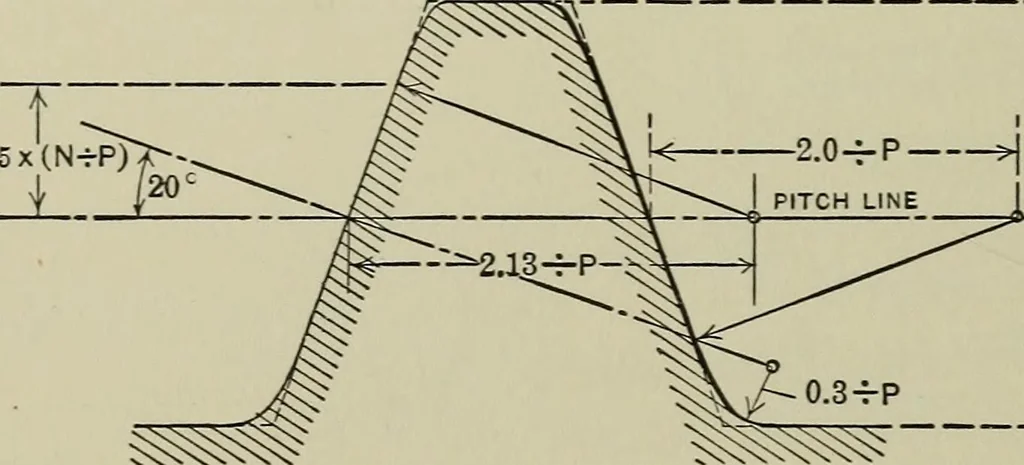

the addendum 8 8 number of the pitch designation. The shape of the rack or hob tooth to roll with the gears pro-duced by the gear shaper should be generated from the cutterused. The Fellows cutters have perfect involutes above thebase line, with radial flanks, so that the hob tooth would bestraight… … I■5-+0.15 P ^^^ -^ + 0.15P Machinery Fig. 18. Hob Tooth for generating a 20-degree Involute Milled Tooth hob tooth would be straight-sided to the point. In this systemthe radial flank of cutters with more than seventeen teeth doesnot aftect the shape of the face of the tooth, as the involute…
