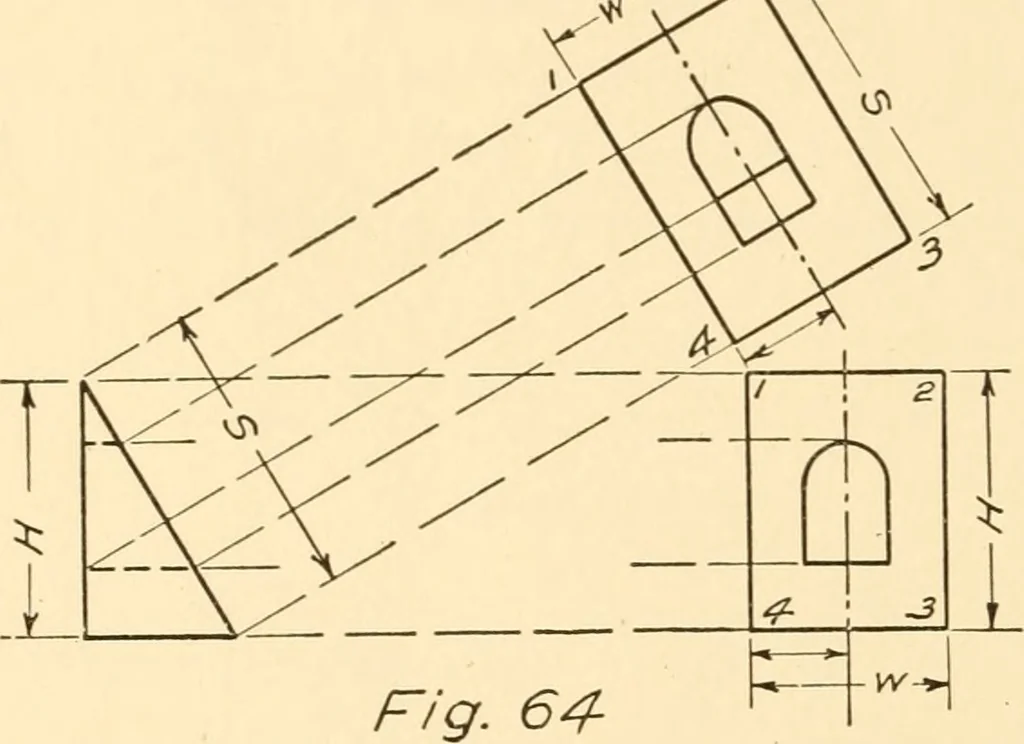

projecting linesperpendicular to the in-clined face which cross thecenter line at right angles.The distances on eitherside of the center line are then obtained from the side viewand measured on the corresponding projection lines of the auxiliaryview, as illustrated for point 4. Compare Figs. 63 and…
