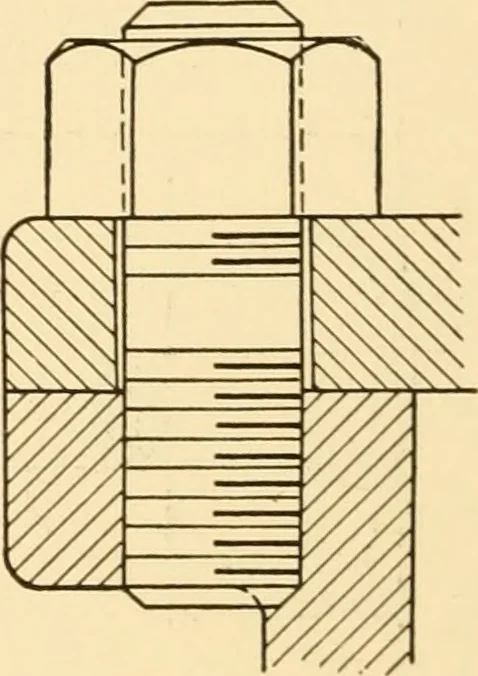

/^/ff. //3 Fig. 114 r/g.ll5 the thread at A to the under side of the head B must be lessthan the thickness of the two flanges. Since the bolt head andnut are standard only three dimensions are necessary whenspecifying a bolt. These are, diameter, length from under sideof head to end of bolt, and…
