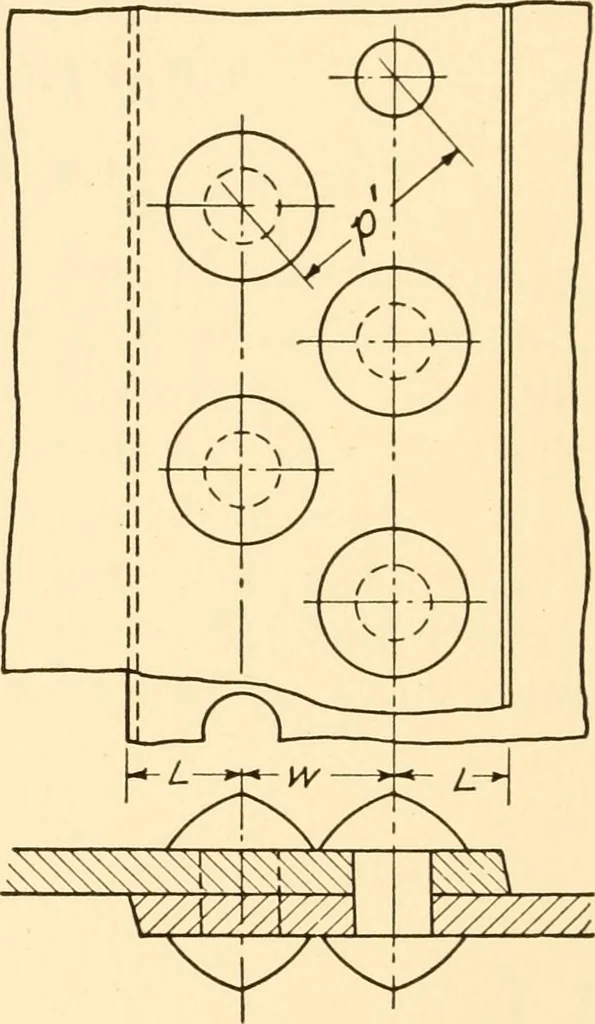

rig. 136 r/g. /3 7 The distance from the center of a rivet in one line to the centerof a rivet in the next line is called the diagonal pitch and may befound from the formula: 3 Either chain riveting (Fig. 138) or staggered riveting (Fig. 139)may be used when there are several rows of rivets.
