Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 78

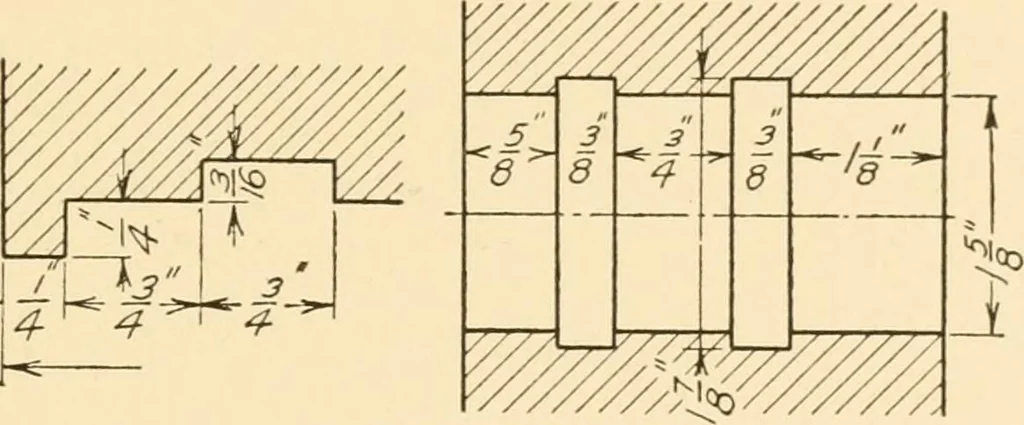

in Fig. 125. 105. Dimensioning Shafts and Cylindrical Pieces.—Shafts should bedimensioned by giving the diameters and lengths together with the sizes ofkeyways and pins and their location, Fig. 126. Often the size dimensionsboth detail and overall are given below the view and the location… … Fig. 125. Crowded Dimensions. lines, either plain or blacked in. A square section may be shown in asimilar way. A note should be used in either case if necessary to makethe meaning clear. Positions of pulleys, gears, etc., are located by centerlines as in the drawing, Fig. 183. Gauge
