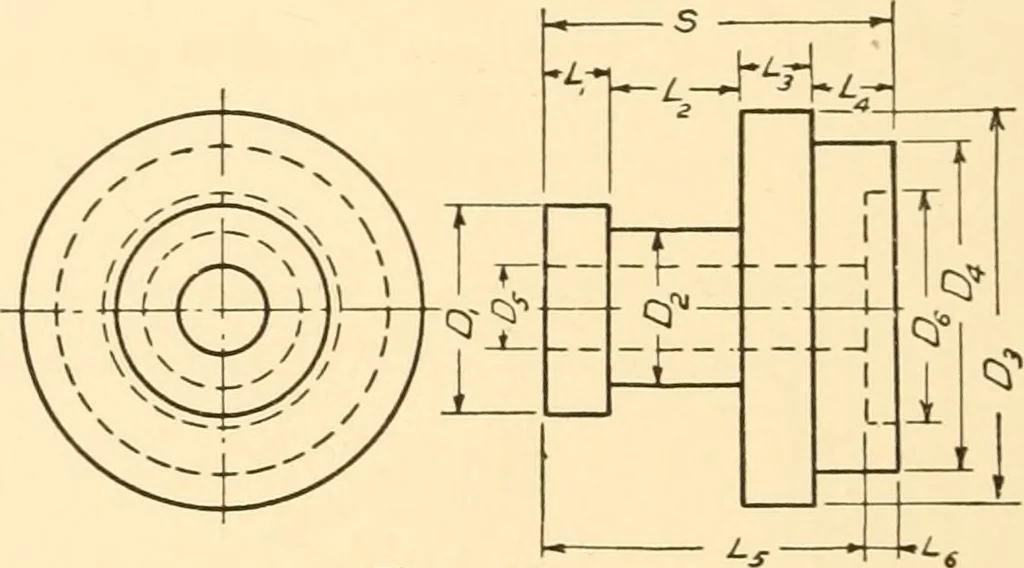

;i: … Fig. /9^ Fig. 195 It is necessary to remember that surfaces and not lines arebeing located. The dimensions of the piece must be kept inmind. Detail drawings are generally made to serve both patternmaker and machinist, and the figures indicate the size of thefinished piece. The pattern maker is left…
