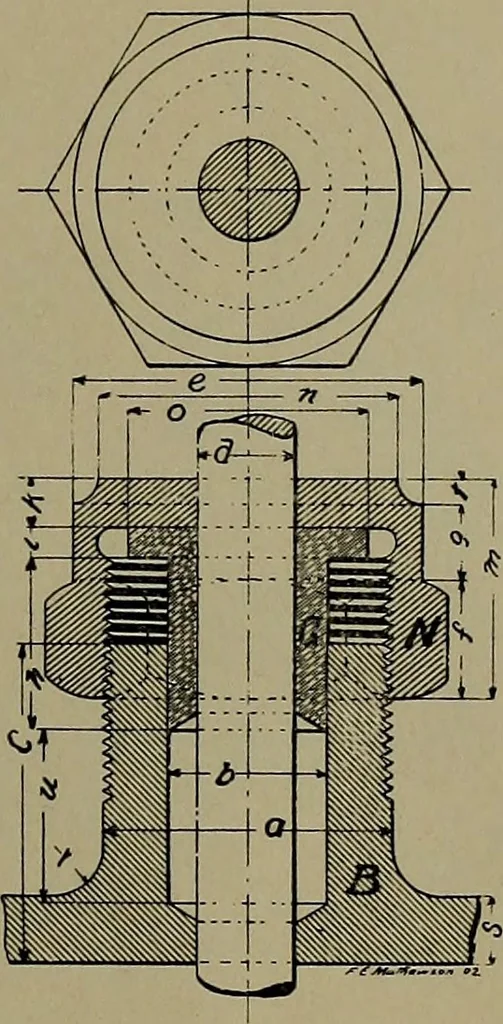

shown by the drawing /s generally used for small work, such as vahespfrdUs, tic. The outside of the siuffrg-tcx (B) is threaded to receive a hexagonal nut (N) that fits over the gland(G). As the nut is screwed down, the gland is pressed down and compresses the packing. Ths proportions given are for… … Make the number ofthreads per inch the same asfor a bolt whose diameter isequal to the diameter of therod. In addition to thetwo views given, make a thirdview showing ths outside ofthe stuffing-box. MECHANICAL DRAWING 44 Sketches for 1\ Glob- Valve
