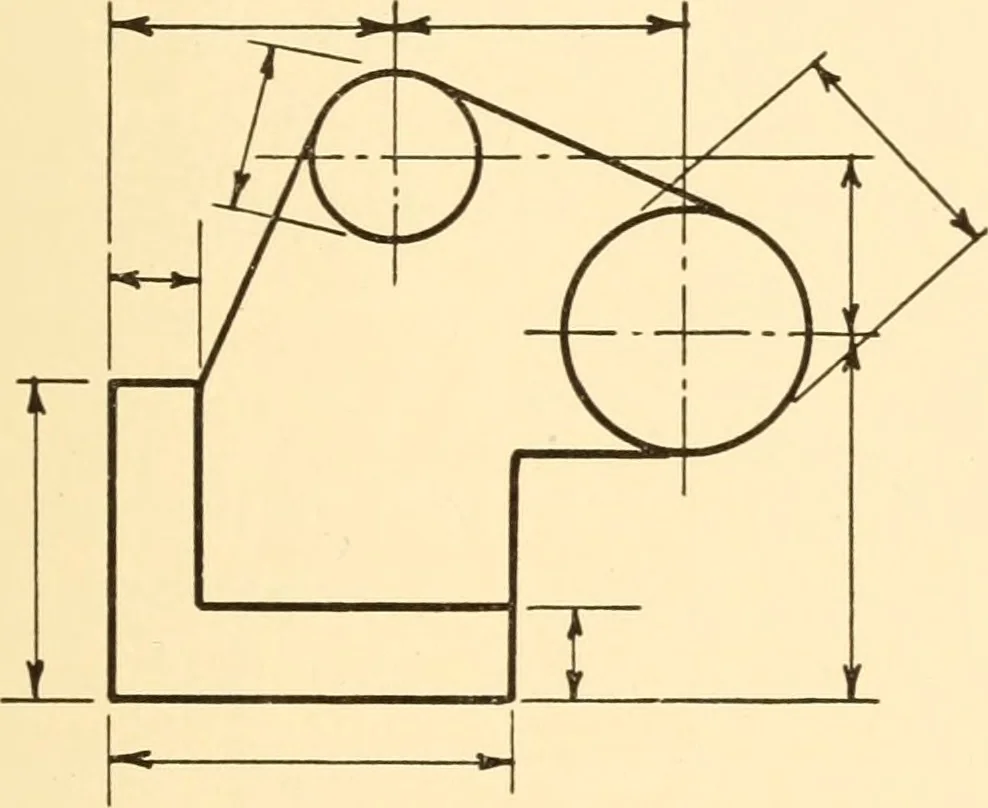

t <:^ J ^^^ li/ / \y\ ^ \ Y\. 1 J L r/g./97 r/g. 196 conform to the first system by placing dimensions outside when-ever it is conveniently possible. Location of Dimensions. — Facility in manufacture should bea motto in dimensioning. The figures must be so placed as to beeasily found and…
