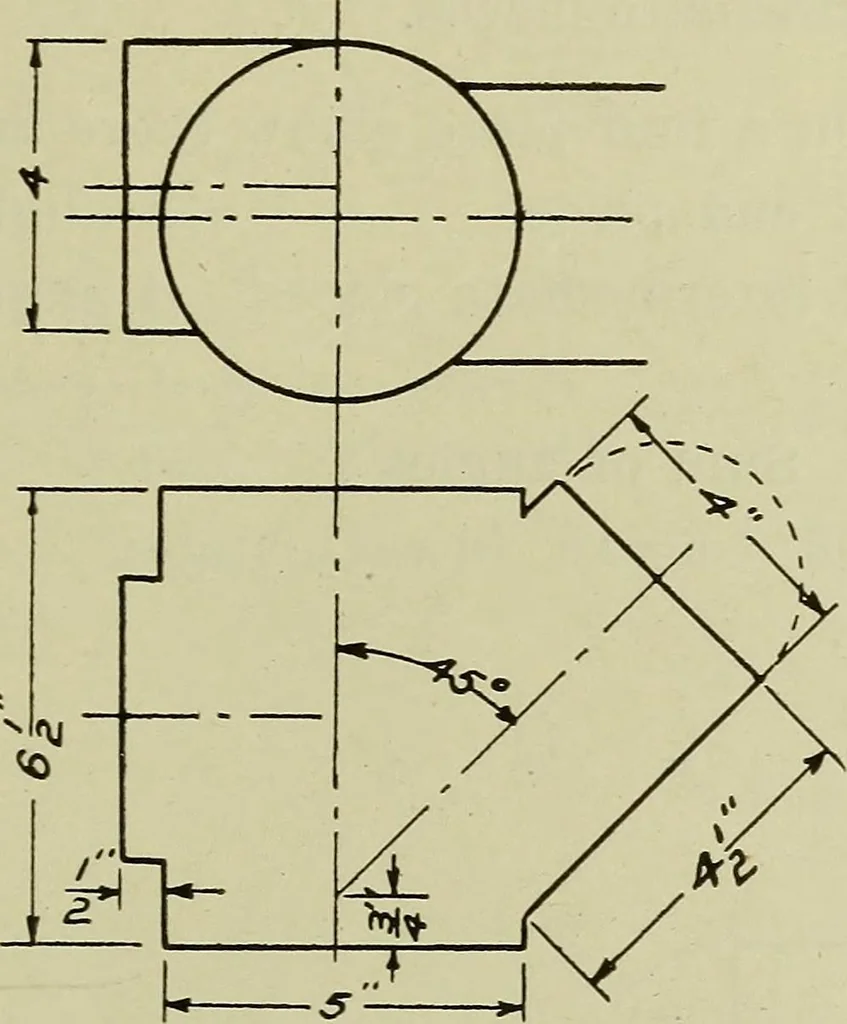

tparallel to the left-hand element, the second at about 45° toH, the third perpendicular to the base. All the planes are tobe perpendicular to V. Find the revolved sections. Fig. 33. 32 Intersections and Developments Show all the necessary projections and the May-outs, ordevelopments, complete. See… … /^/a v3-f Prob. 34. Sheet Metal Pipe Connection. Place the cen-ter of the H projection of the intersecting cylinders, indicatedin Fig. 34, 7l^ to the right of the left-hand border and 914*above the lower border of a C-size sheet. Place the bottomof the V projection 4% above the lower border. At the…
