Mechanical drawing. Elementary and advanced (1910)
Reid, John S. (John Simpson), 1856- · New York, J. Wiley & sons; [etc, etc.] · leaf 273

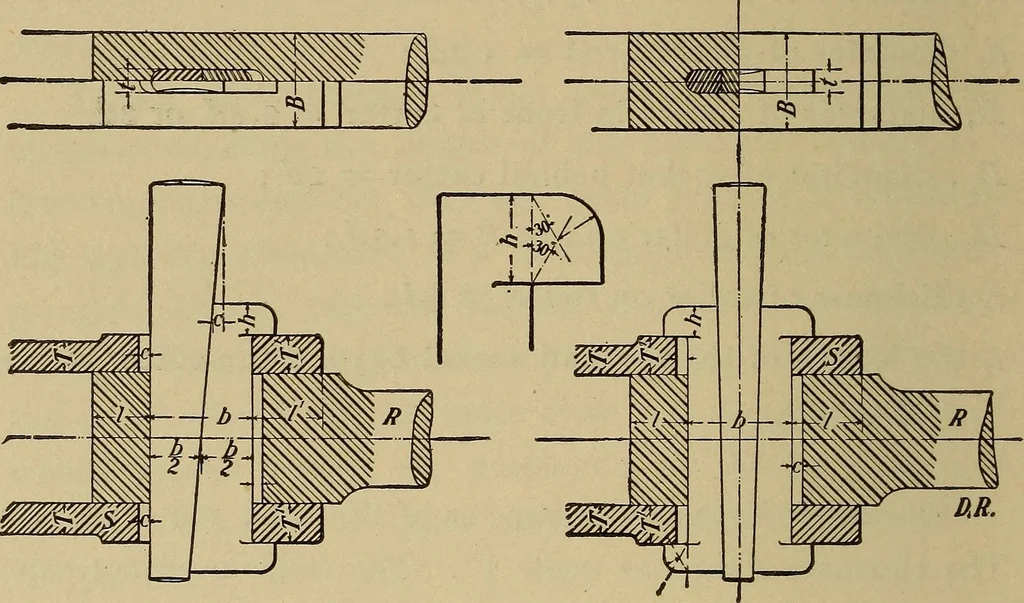

S< MECHANICAL DRAWING. and the cotter as the latter is driven into place. Figs. 340and 341 show the application of gib and cotter to strap-endconnecting-rods, where R is the rod and S the strap. Whentwo gibs are used, as . in Fig. 342, the sliding surface on eachside of the cotter is the same.… … Fig. 34c. Fig. 341. Fig. 342. single cotter and should be proportional to the strap 5. Theworking strength of the strap at the thinnest part is found bythe equation 2BTft = P. from which T = 2Bft (12) where Pis the maximum pull on the xo\ Tthe thickness, ELEMENTARY MACHINE DETAILS. 259 and B the…
