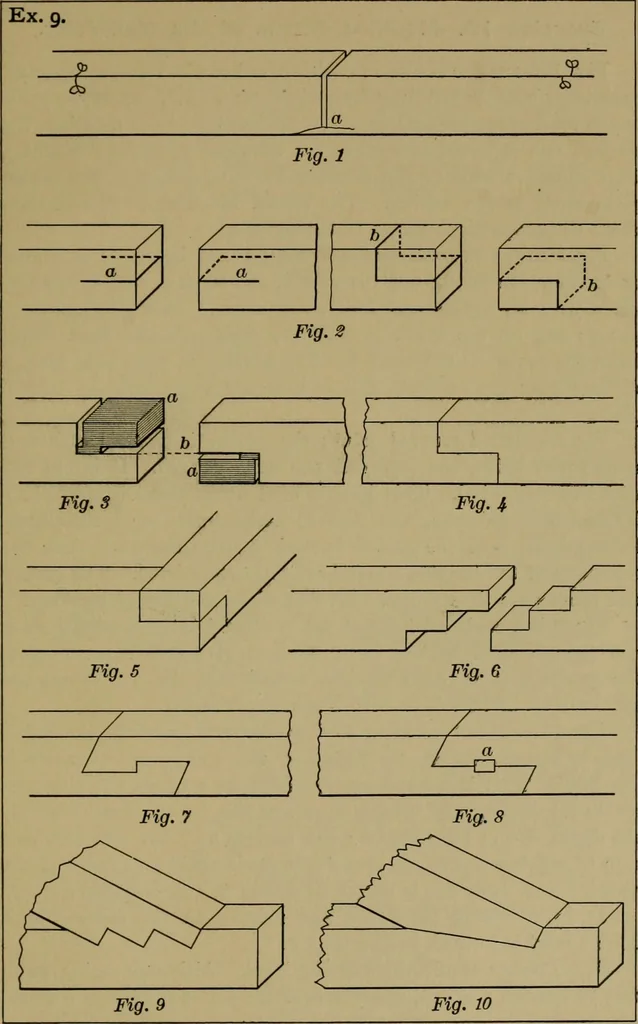

well as in Fig. 4. The same method of marking and cutting is employed to makethe scarf-joints, of which Figs. 6, 7, and 8 are examples. In thejoint (Fig. 8) the pieces are forced together by the key a, which isslightly wedge-shaped. The joints (Figs. 9 and 10) used in building trusses may bemade… … 88 SIMPLE JOINTS. Exercise lO.—Modified Forms of the Half-Joint. Fig. 1 shows the pieces in position and marked for a lap-joint,commonly used in building frame houses; Fig. 2, the upper piececut to receive the vertical one. In nailing the pieces together, thevertical one is forced up against the…
