Hasluck, Paul N. (Paul Nooncree), 1854-1931, ed · Philadelphia, D. McKay · leaf 505

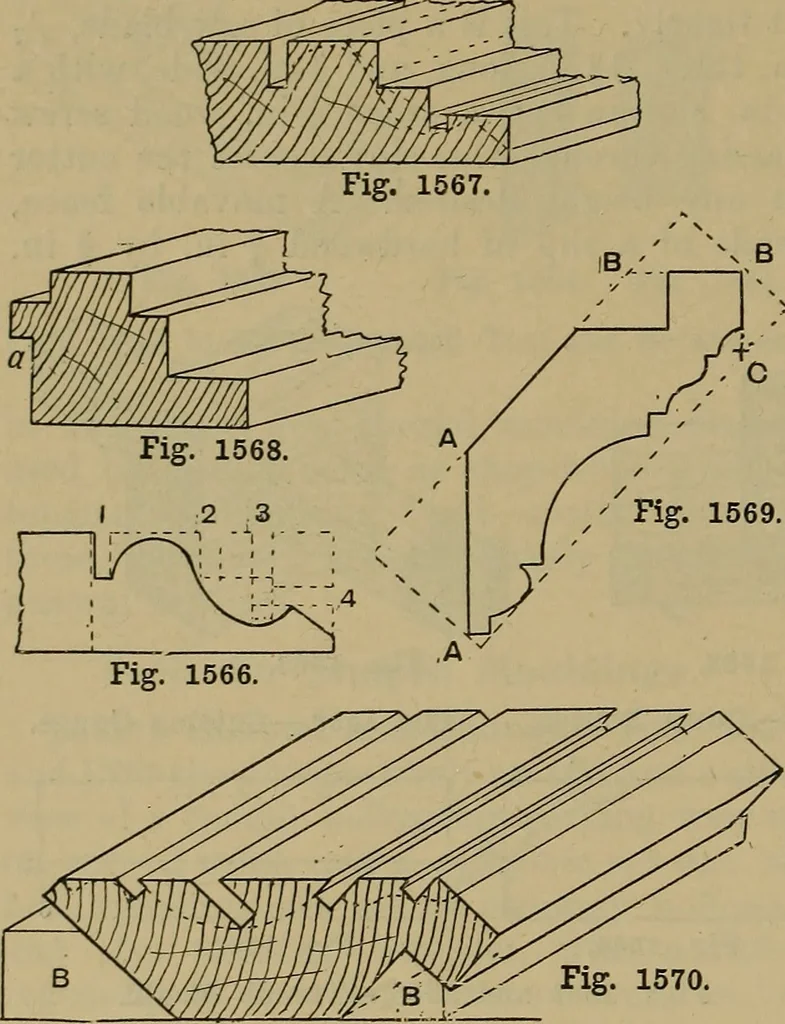

face of the cutter must always be turnedtowards the side on which the clean edgeis desired. 472 CARPENTRY AND JOINERY. Working- Thumb Mould. To work a thumb mould (Figs. 1564 and1565) on the edge of a table or sideboard top,first square up the edges to the requiredsize, then with the cutting gauge… … Fig. 1570. Fig. 1566.—Ogee Panel Mould. Fig. 1567.—Working Ogee Panel Mould. Fig. 1568.—Working Bolection Mould. Fig. 1569.—Cornice Mould. Fig. 1570.—Working Cornice Mould. Fig. 1565, and work this on the two sideedges of the top. Then fix a straightedgeto the gauge line across the end by meansof…
Carpentry · Joinery
