Experimental engineering and manual for testing (1903)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & sons; [etc., etc.] · leaf 224

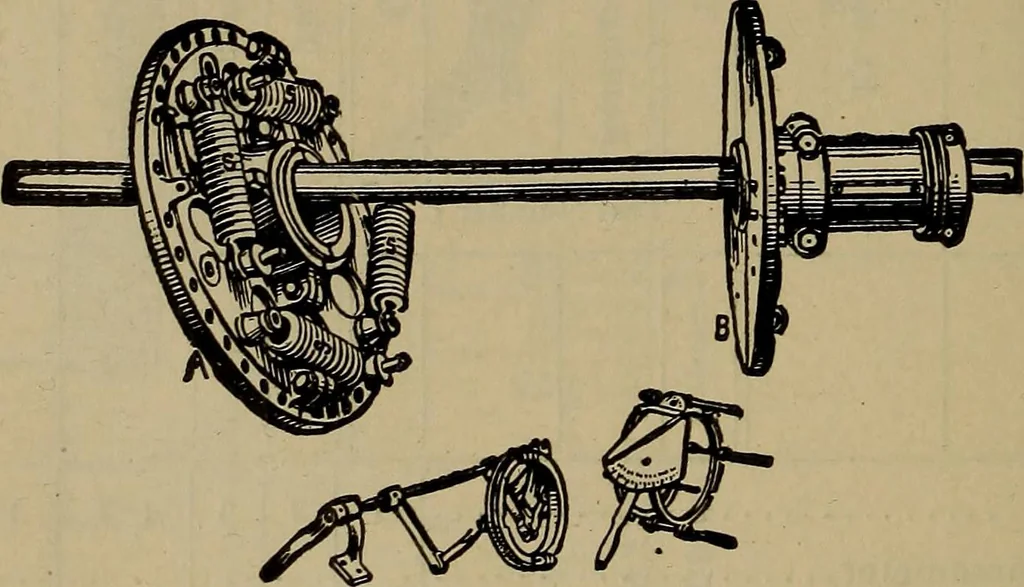

Fig. 97>6.—Van Winkle Power-meter. the springs ss. The angular position of the plated with refer-ence to B will vary with the force transmitted. This angularmotion is utilized to operate levers, and move a loose sleeve … Fig. 977.—Parts of the Van Winkle Power-meter. longitudinally on the shaft. The amount of motion of thesleeve, which is proportional to the force transmitted, is indi-cated by a hand moving over a graduated dial. The dial isgraduated to show horse-power per 100 revolutions. § 196.] MEASUREMENT OF…
