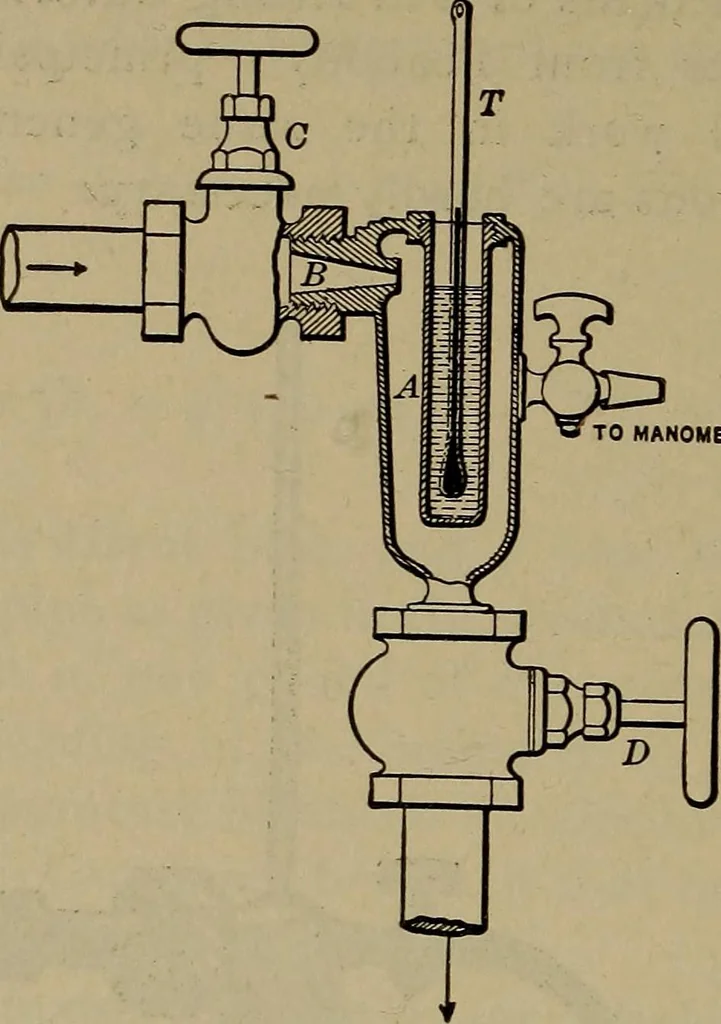

thecalorimeter chamber, it is of small size and keeps the currentof steam intimately in contact with the thermometer. Carpenters throttling calorimeter, shown in Fig. 157, is pro-vided with an attached nozzle for spraying the sample ofsteam over the themometer-bulb. The instrument may beused with… … Fig. 157.—Carpenters Calorimeter. Throttling Calorimeter of Pipe-fittings.—A very sat-isfactory calorimeter can be made of pipe-fittings, as shown
