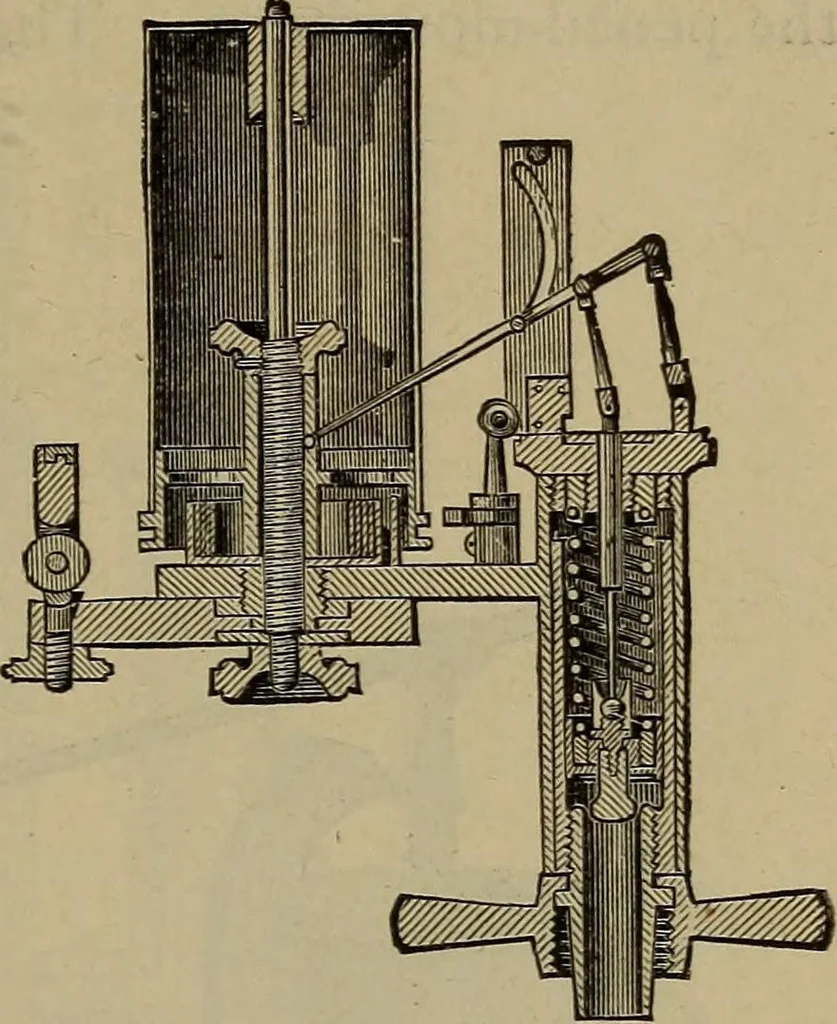

Fig. 177.—The Tabor Indicator. motion of the pencil by a pin moving in a peculiarly-shapedslot. It also differs in details of construction and in formof the indicator-spring; the pencil-point being arranged tomove not only parallel to the piston, but uniformly five timesas fast as the piston at… … Fig. 178.—Section of Tabor Lndicatob. The method of changing springs in the Tabor indicator is asfollows : Remove the cover of thecylinder, remove the screw beneaththe piston, unscrew the piston fromthe spring and the spring fromthe cover, and replace the springdesired. When the lower endof the…
