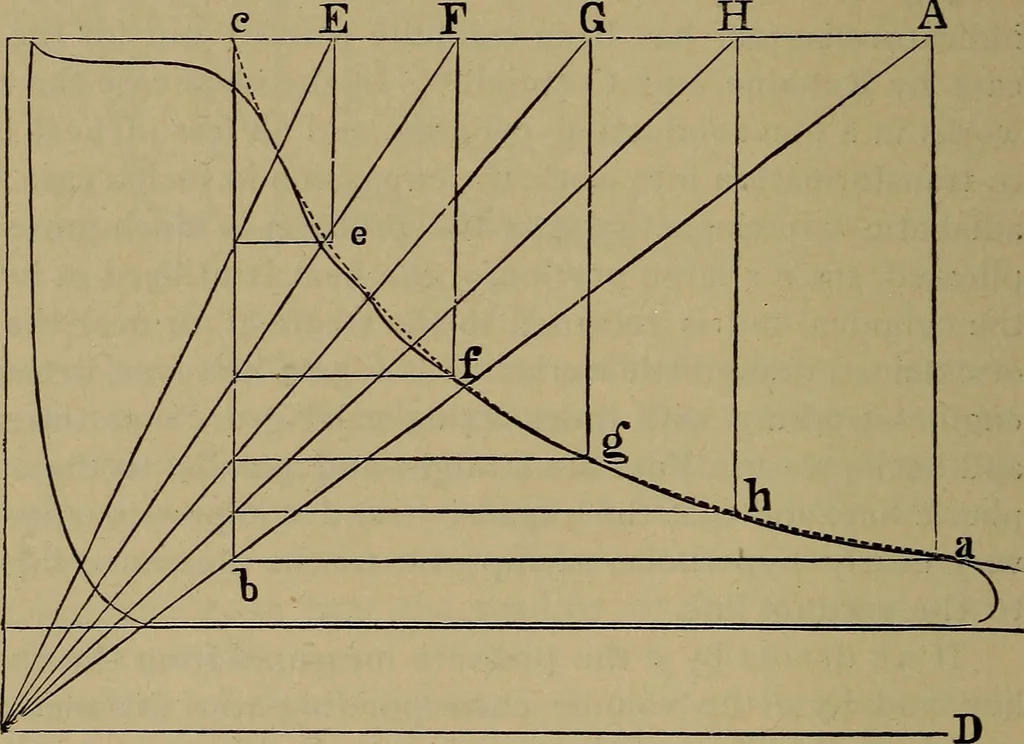

idealexpansion line in any given case may be considerable, and thehyperbola drawn from the same origin is considered as good areference-line as any that can be used, and the student shouldbecome familiar with the best methods of constructing it. 404. Methods of Drawing an Hyperbola.—The methodsof… … Fig. 204.—Method of Drawing an Hyperbola. atmospheric line through B; find by producing the steam andexpansion lines the point of cut-ofT, c. Draw a series ofradiating lines from the point C to the points E, F, G, H, andA, taken at random, and a line cb intersecting these lines,drawn from c…
