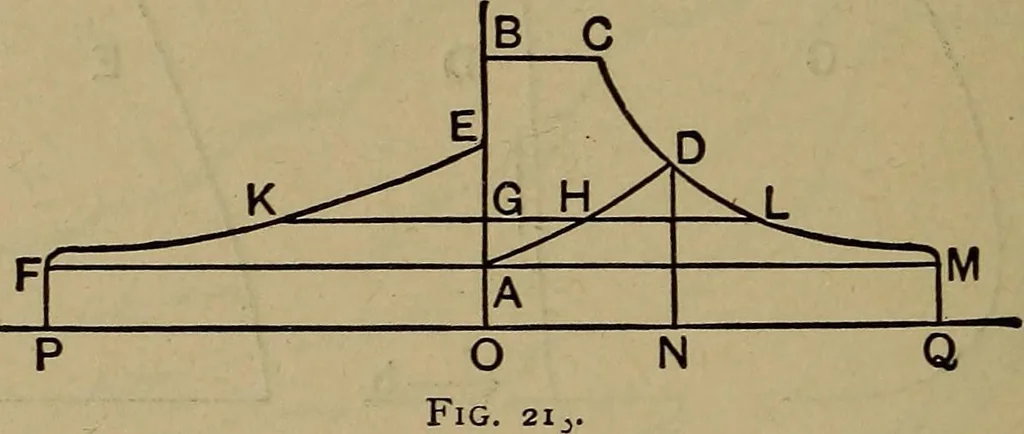

am-pressure acting in the small cylinder. Lay offON proportional to the volume of the small cylinder, and OPproportional to the volume of the large cylinder. Let FA bethe line of back pressure of the large cylinder, AD that ofthe small cylinder: then BCD A is the diagram from the smallcylinder,… … in both cylinders when the pressure is OG, and Z is a point inthe expansion line the same as though the action took placein the large cylinder only. In the same way other points maybe found, and the line CDLM drawn. This diagram may bediscussed as if it represented the steam acting in the…
