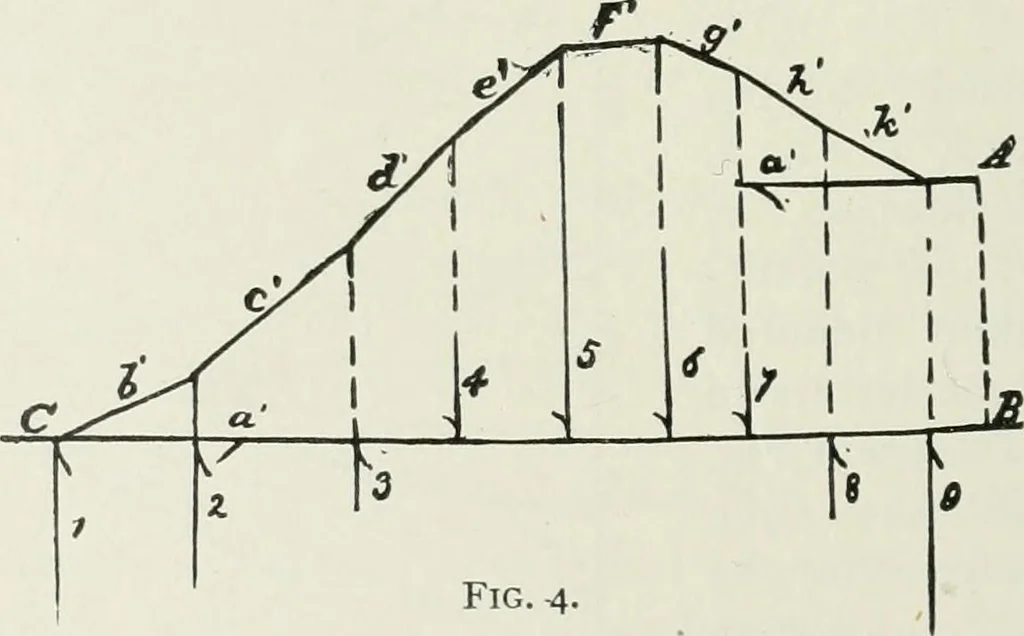

equation 7^ = —=—it is seen that the scale for the ■I h forces does not affect the height of any joint of the polygon ;it depends only on the scale according to which x or the hor-izontal span is drawn. Let the line PP be drawn parallel to EC, and let P bethe pole of a new equilibrium polygon ; the… … the same, 7> cannot vary. Hence, any movement of the poleparallel to the load line does not chafige the vertical dimensions EQUILIBRIUM POLYGONS. 23:
