Experimental engineering and manual for testing (1903)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & sons; [etc., etc.] · leaf 525

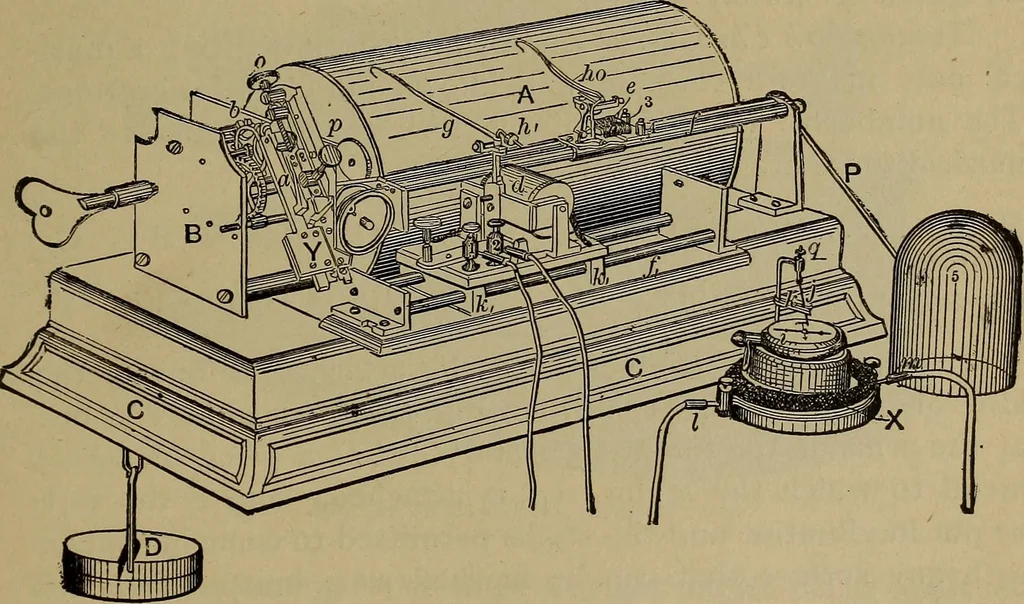

FlG. 219.—SCHAEFFER AND BUDENBERG HaND TaCHOMETER. vattbs mercury in the revolving arms and depresses it in thecentre tube. A calibrated scale gives the number of revolu-tions corresponding to a given depression. 415. The Chronograph.—The chronograph,* Fig. 220, con-sists of a drum revolved by… … Fig. 220. definite number of revolutions per minute. A carnage hav-ing one or two pens, h, g, as may be required is moved parallel * See Thurstons Engine and Boiler Trials, page 226. 5^0 EXPERIMENTAL ENGINEERING. [§415- to the axis of the cylinder by a screw which is connected withthe…
