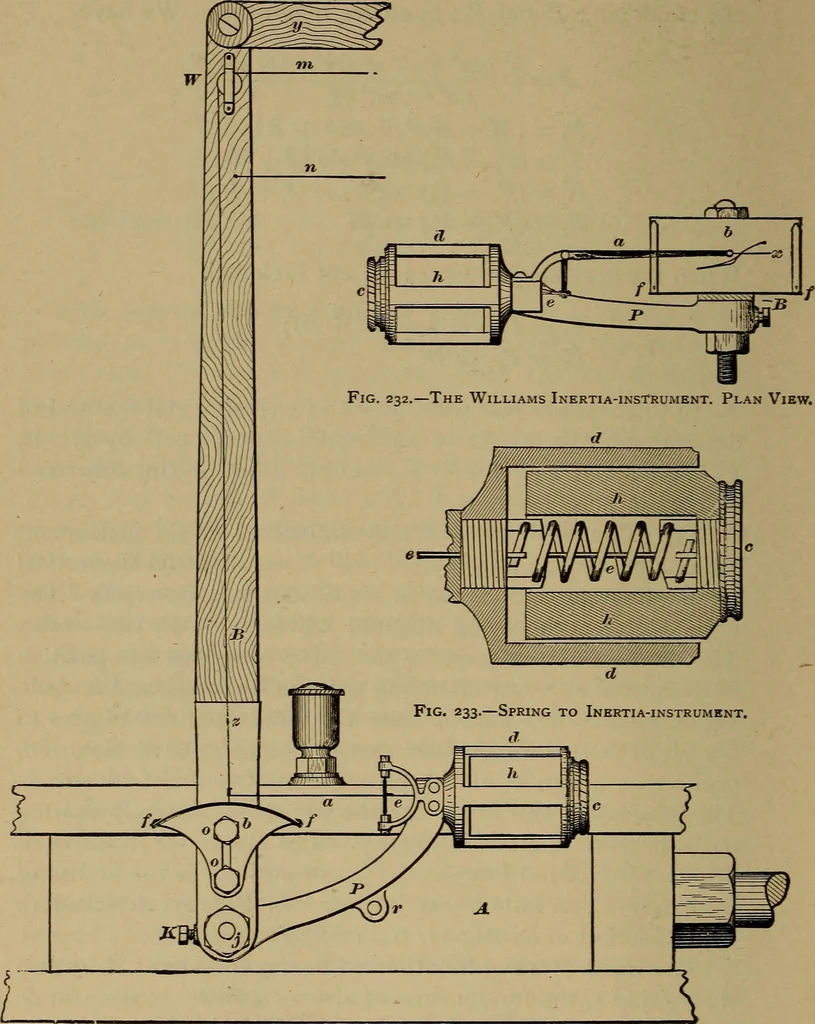

tal force at the crank-pin due to the inertia ofthe parts. The instrument is shown in Fig. 231 attached tothe cross-head of an engine, and in Fig. 232 in plan. The frame P is rigidly attached to the cross-head A by twostudsy and r, the former serving also as a pivot for the arm B.The upper end of B… … Fig. 231.—The Williams Inbrtia-inuicator, § 43 7-] DE TERM IN A TION OF INER 7lA. 6o I with the flame Pand the parts carried by it, travelling withthe cross-head. Within the case or cage d (shown in sectionin Fig. 233) the weight k is free to slide horizontally on steelfriction rollers, except as…
