Locomotive catechism; an up-to-date, practical and complete work on the locomotive--treating on the design, construction, repair and running of all kinds of locomotives .. (1908)
Grimshaw, Robert, 1850- [from old catalog] · New York, The N. W. Henley publishing company · leaf 336

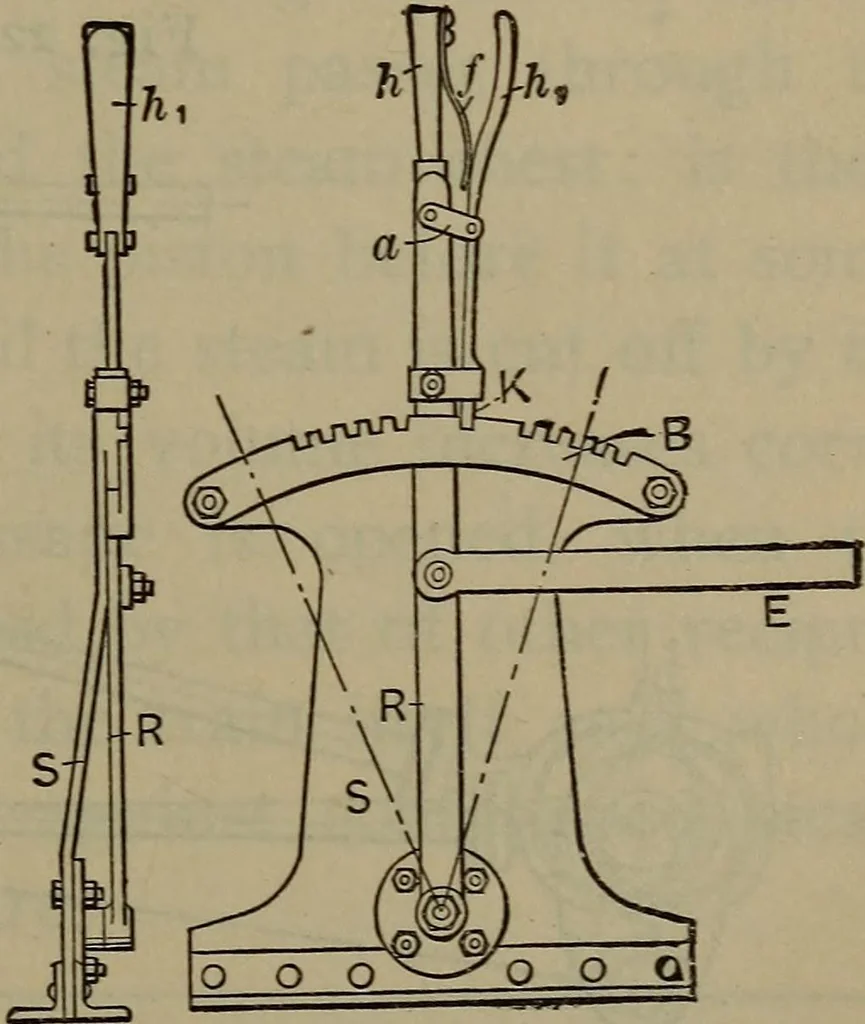

Fig. 224. Inside Valve Gear. together by a spring and grip-ping the screw. This nut isopened by a lever operated bythe drivers foot. Fig. 224 showsa German inside gear with aninclined slide valve. Figs. 225and 226 show the quadrant andreverse lever. Q. Are there many other va-rieties of reversing… … Figs. 225 and 226.Quadrant and Reverse L,ever. 330 LOCOMOTIVE CATECHISM.
Locomotives
