Experimental engineering and manual for testing (1903)
Carpenter, Rolla C. (Rolla Clinton), 1852-1919 · New York, J. Wiley & sons; [etc., etc.] · leaf 617

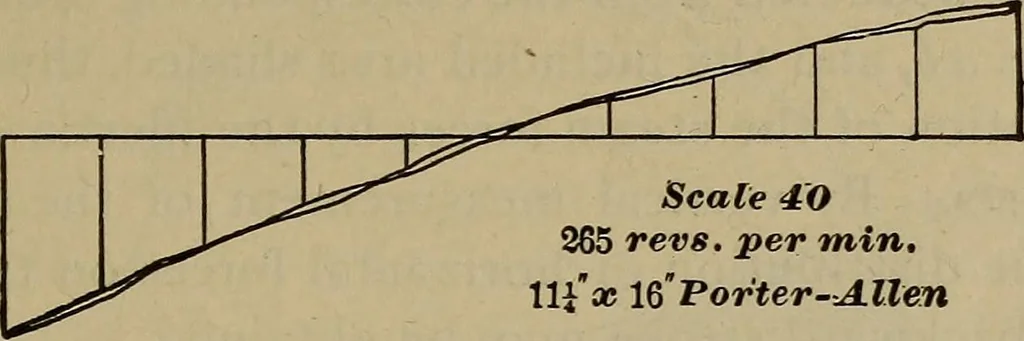

dicator-card, the force persquare inch of piston-area is required. This is best obtainedby getting the weight-ratio or the weight of reciprocating partsper square inch of piston-area. This multiplied by the scale ofthe inertia-diagram gives the engine-scale or scale of pounds per §438.]… … Scale 40revs, per min, llix IQrorter-zAllen Fig. 234.—Inertia-diagram.
