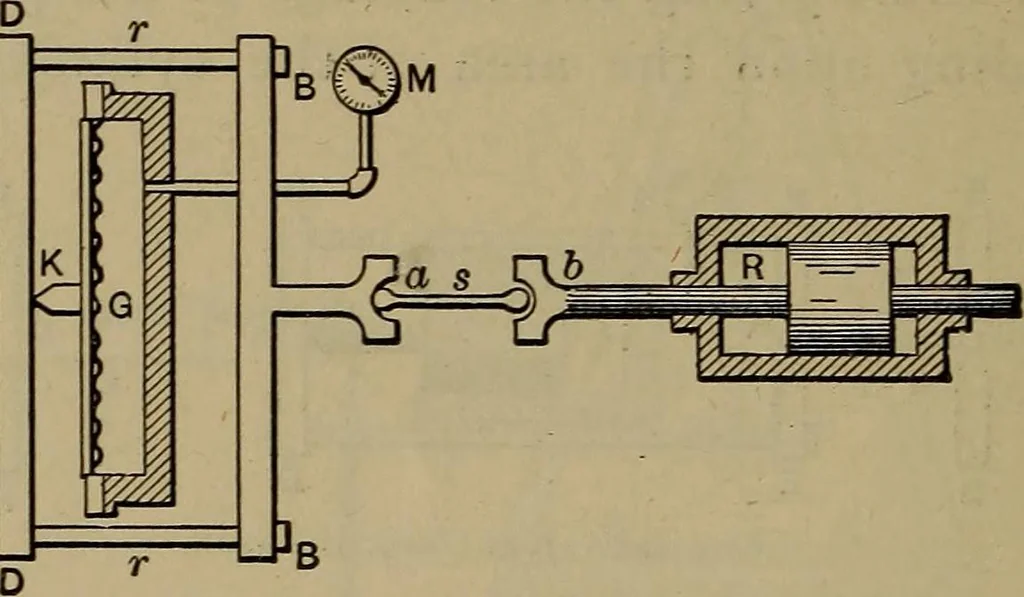

ed by adjusting the w^eights on thescale-beam, thus providing means of weighing the forceapplied to the specimen. Fig. 22tn is a sketch of the working parts of the Maillardmachine, in which the weighing apparatus consists of a fluidwhich is put under pressure by means of a diaphragm against 78/… … Fig. ■20.111.—Maillard. Fifth, the Emery machine. The general principle of theEmery testing-machine is shown in Fig. 22n. Power isapplied by means of the double-acting hydraulic press R so asto break the specimen either in tension or compression, asdesired. The specimen is placed at s, and the…
