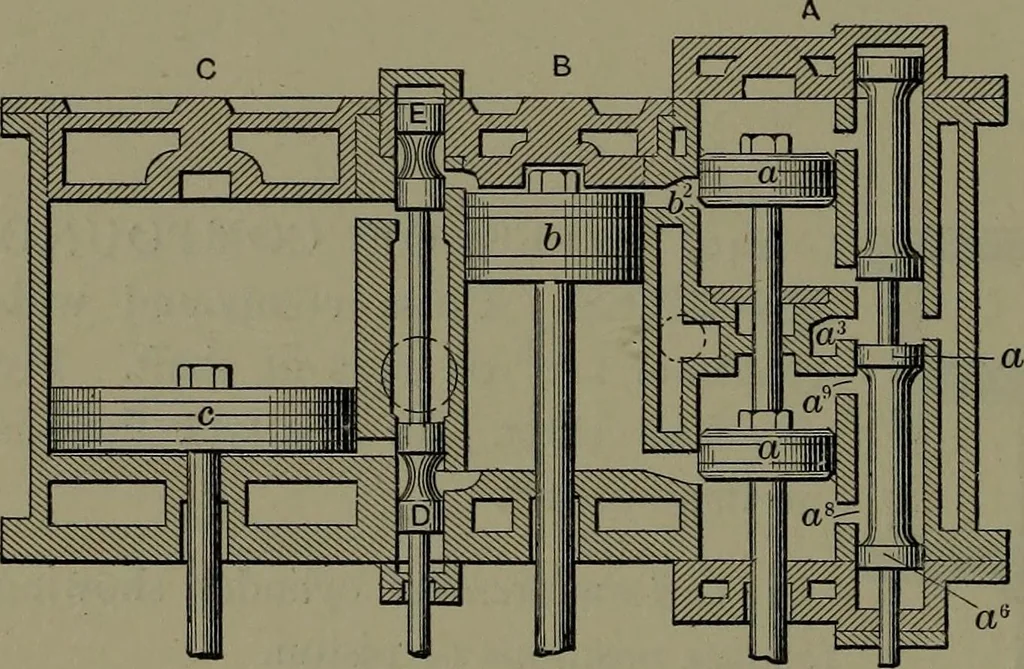

144. TYPES OF COMPOUNDENGINES. Tandem compoundtypes in which the forward cylinderis high pressure with close connectionto the low-pressure-cylinder with onlya metallic sleeve as a stuffing box. 145. In the reverse type the cylin-ders are independent and separated ashort distance with regular… … rangement of cylin-ders, steam valves,and ports whereby theback pressure of theintermediate cylinderwill not act as an op-posing force on thehigh-pressure piston,and will also furnishfull pressure of steamin the intermediatewithout increasing back pressure in the high. Steam enters the cham-ber a?^…
