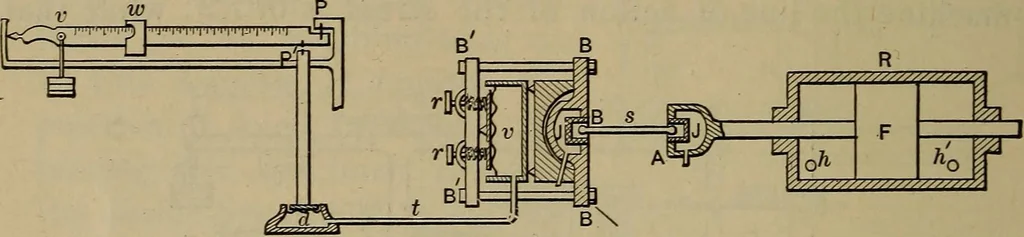

Fig. ■20.111.—Maillard. Fifth, the Emery machine. The general principle of theEmery testing-machine is shown in Fig. 22n. Power isapplied by means of the double-acting hydraulic press R so asto break the specimen either in tension or compression, asdesired. The specimen is placed at s, and the… … Fig. 22«.—Emery. the fluid in the hydraulic support v through a frictionless dia-phragm, from which the fluid pressure is transmitted to thevessel with the smaller diaphragm d, the pressure of which isbalanced and weighed on the weighing-scale w. If thespecimen is in compression the force is…
