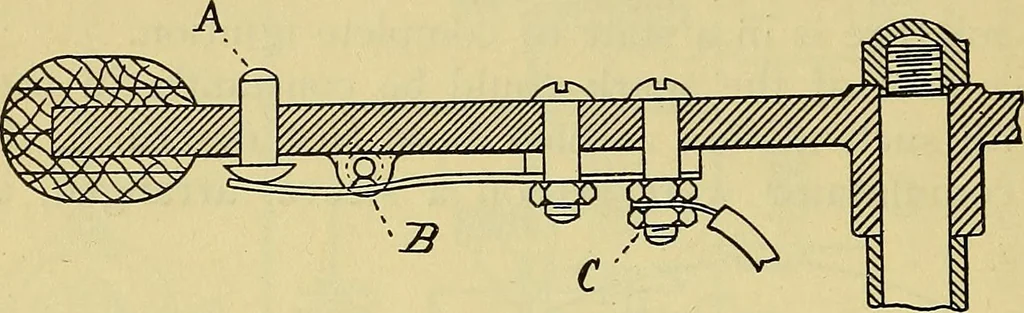

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 301 — cuit. With many of the best makesof carriage the coil is furnished with a magnetic trembler and theprimary circuit is made and broken by a rotating wipe contact 288 SELF-PROPELLED VEHICLES. commutator. As shown in accompanying figures, the rotatingmember may be either an insulated disc with a… … Fig. 206.— The Searchmont Steering- Wheel with Electric Circuit BreakerOne terminal is at C, the other at pin, B. By depressing button, A;contact may be broken. By withdrawing pin, B, circuit may be in-terrupted, rendering it impossible to start the engine. disposition of their cranks in degrees.…
