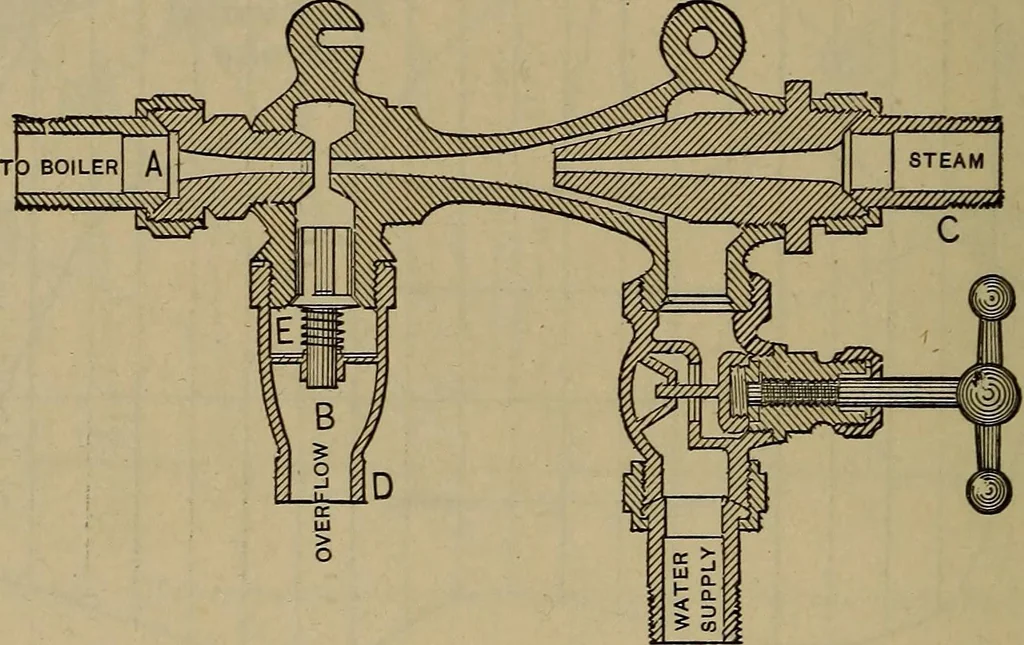

ore clearly revealed for both strokes,and the areas above and below XX respectively, give the actualwork on the crank-pin for forward and return strokes. CHAPTER XXI. THE STEAM-INJECTOR-THE PULSOMETER. 439. Description of the Injector.—The steam-injector is an instrument designed for feeding water… … Fig. 241.—The Mack Non-lifting Injector. taking the place in that case of both condenser and air-pump.It was designed by Henri Jacques Giffard in 1858. In its most simple form (see Fig. 241) it consists of a steam-nozzle, the end of which extends somewhat into a chamberor converging tube called the…
