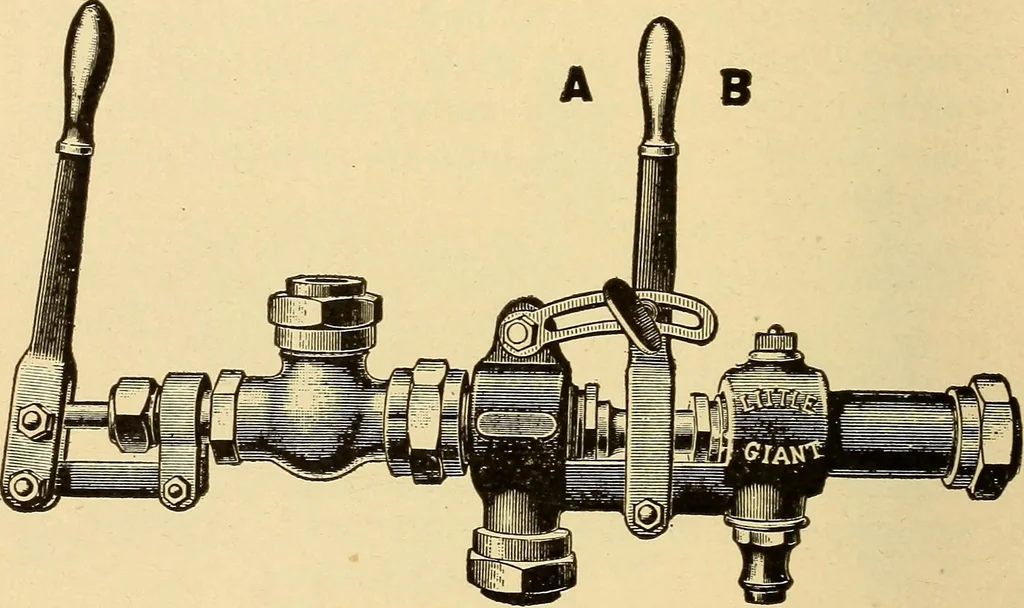

. i.;. Large Packing Nut. L7. chock Valve, i i. Small Packing Nut. 170 LOCOMOTIVE APPLIANCES. This injector is fitted with a movable combiningtube (part numbered 25 in sectional view) operated bya lever which allows it to be adjusted to workcorrectly at different pressures of steam and under… … Fig. 15. Little Giant Locomotive Injector. the starting valve slightly; when water shows at theoverflow, open full. Regulate the water by movingthe combining tube—toward A for less water, andtoward B for more water. To Use as a Heater.—Close the overflow by movingthe combining tube toward B until…
