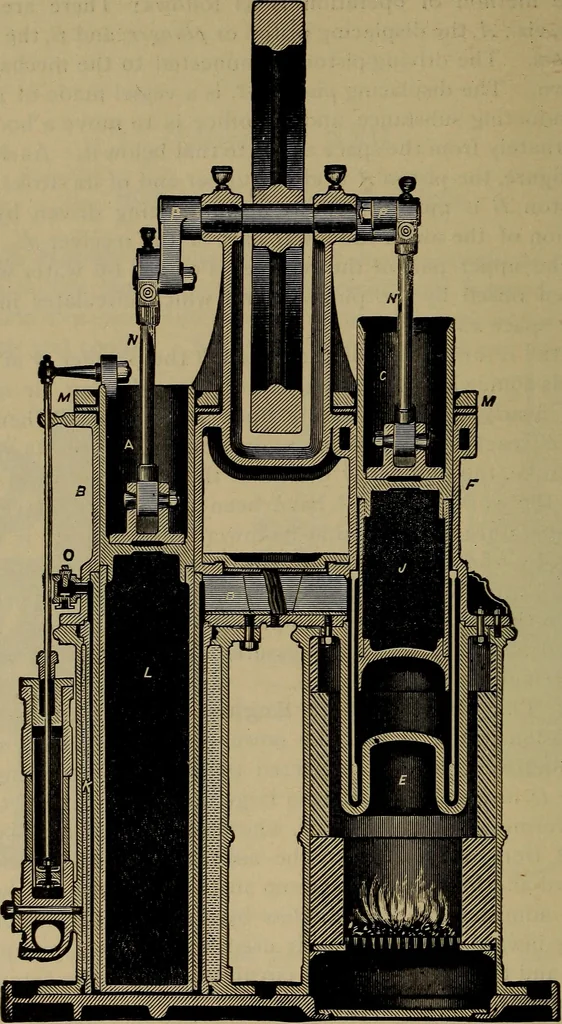

egenerator,, whose office is to alternatelyabstract from and return to the air the heat in its passagebackward and forward. The same air is used continuously; itmay be admitted to the cylinders by a simple check-valve O,opening inward. The engine is used entirely as a pumping-engine, and the water… … Fig. 247.—Thb Rider Hot-air Pumping-enginb. § 452.] HOT-AIR AND GAS ENGINES. 627 the lower part of the compression-cylinder B^ when, by theadvancing or upward motion of the power-piston C and thecompletion of the down stroke of the compression-piston Aythe air is transferred from the…
