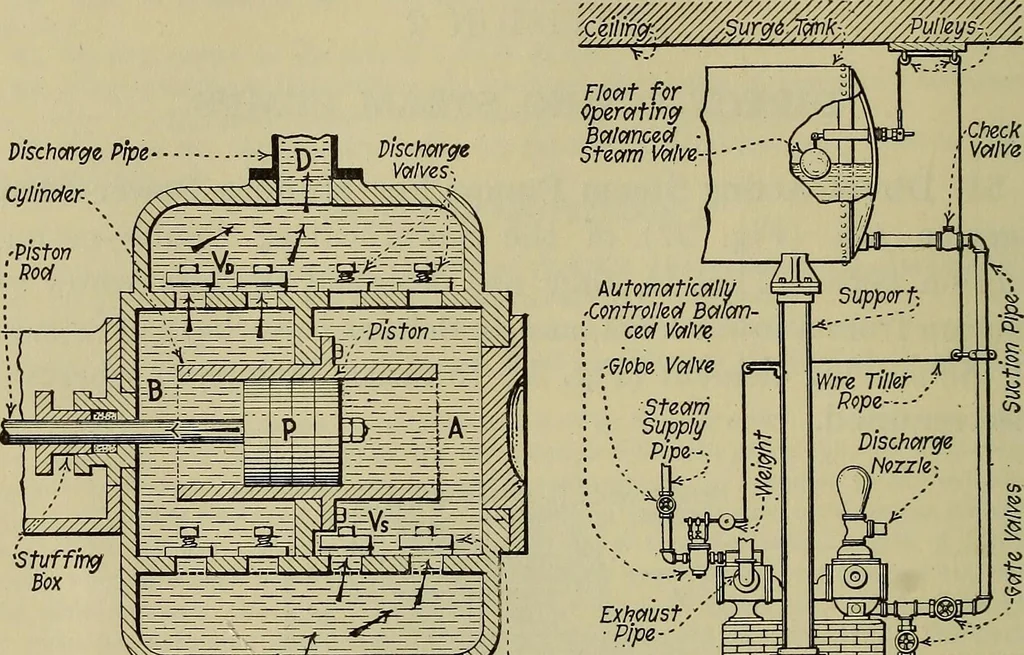

stroke, a partial vacuum is created in the space B. Waterthen enters space B through the left-hand pair of suction valves, whilethe water in A is forced out through the right-hand pair of dischargevalves. 39 40 STEAM POWER PLANT AUXILIARIES [Div. 2 Note.—The intake water often flows under pressure… … Suction Pipe- ..........^Jnb-I Suction Valve Fig. 28.—Illustrating The Principle OfThe Reciprocating Pump. ■N ■•=■• ■ -- suctwri from Well:1 Fig. 29.—Intake Water Often Flows Un-der Pressure To The Suction Nozzle. 52. The Allowable Velocity Of Flow In The Water-PipingOf A Direct-Acting Steam-Pump…
