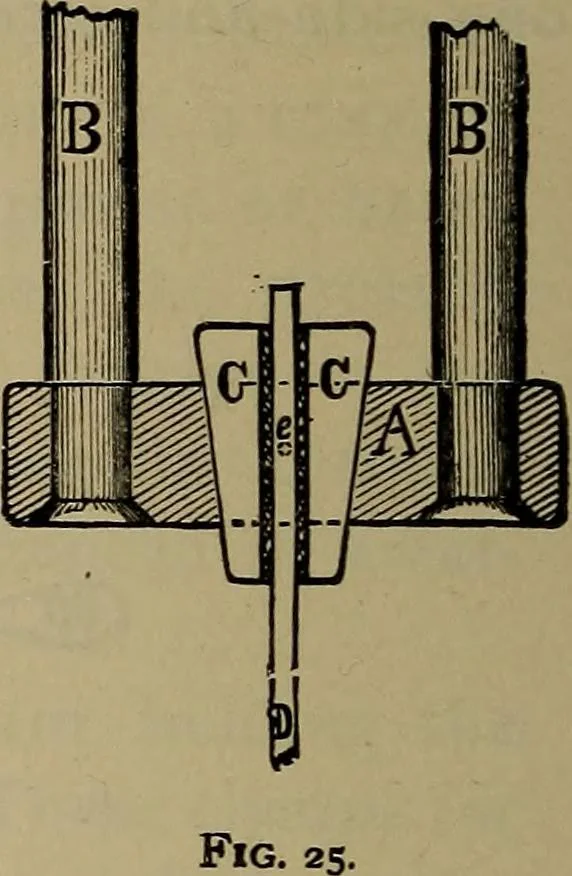

Fig. 24. Fig. 24*. … Fig. 25 is a sectional view of same. Fig. 24 is a view ofthe wedge-faced clamp. The inclination of the surfaces of thewedges are exaggerated in the drawings,so as to distinctly setforth their features. Wedges have been made with spherical backs, and a por-tion of the draw-heads mounted on ball…
