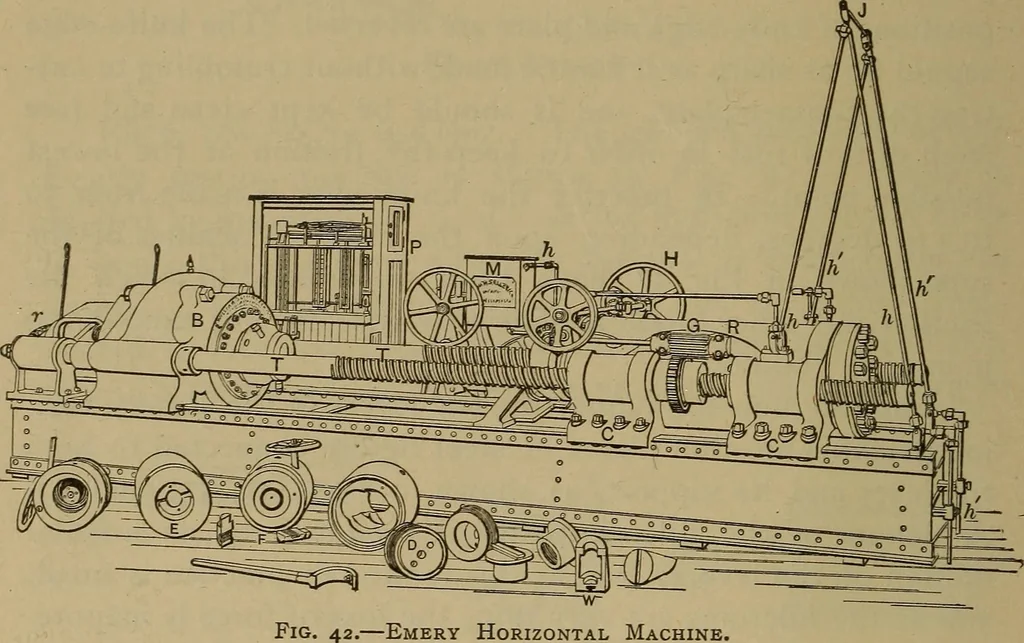

ydraulic support as used in a ver-tical machine is shown in Fig. 50, its method of operation inFig. 41. Second, the peculiar steel-plate fulcrums, whichhave been described. These together with excellent work-manship throughout have served to make the Emery testing-machine an instrument of precision… … Emery Horizontal Machine. In this figure M is the pump for operating the hydrjulicpress, hh the connecting piping, TT screws forming a partof the frame and used for adjusting the position of the pressfor different lengths of specimens, c<nd of sufficient strength towithstand the shock due to…
