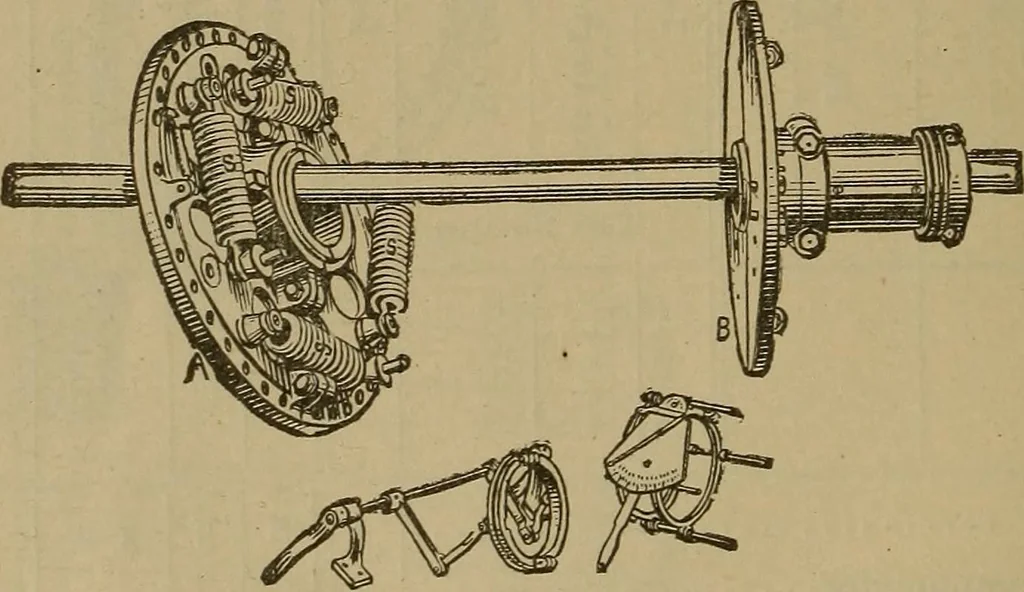

Fig. 136.—Tan Winkle Power-meter. the springs ss. The angular position of the plated with refer-ence to B will vary with the force transmitted. This angularmotion is utilized to operate levers, and move a loose sleeve … I<IG. I37. -Parts of the Van Winkle Power-meter. longitudinally on the shaft. The amount of motion of thesleeve, which is proportional to the force transmitted, is indi-cated by a hand moving over a graduated dial. The dial isgraduated to show horse-power per 100 revolutions. §196-] MEASUREMENT…
