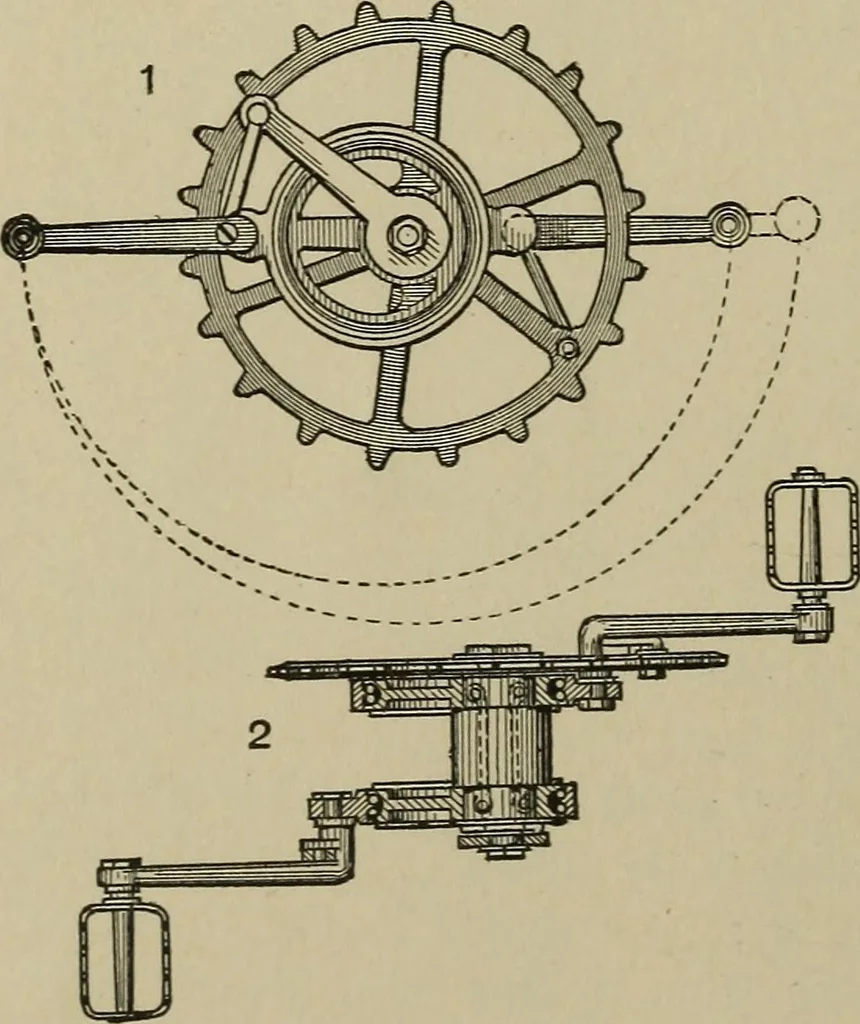

ifferentdistances of the pedals fromthe hub of the sprocketwheel in their downwardand upward movement.The improvement has beenpatented, and the applica-bility of the principle to any machine used to transmit power will bereadily seen. Forming a part of or rigidly secured to the bearings ofthe… … MECHANICAL POWER, LEVER. 21 the rings as to constitute rigid extensions of them, and both the ringsand central shaft are preferably provided with ball bearings. To eachend of the shaft is secured an arm whose outer end is connected by alink to the crank, the crank being in advance of the arm, or…
