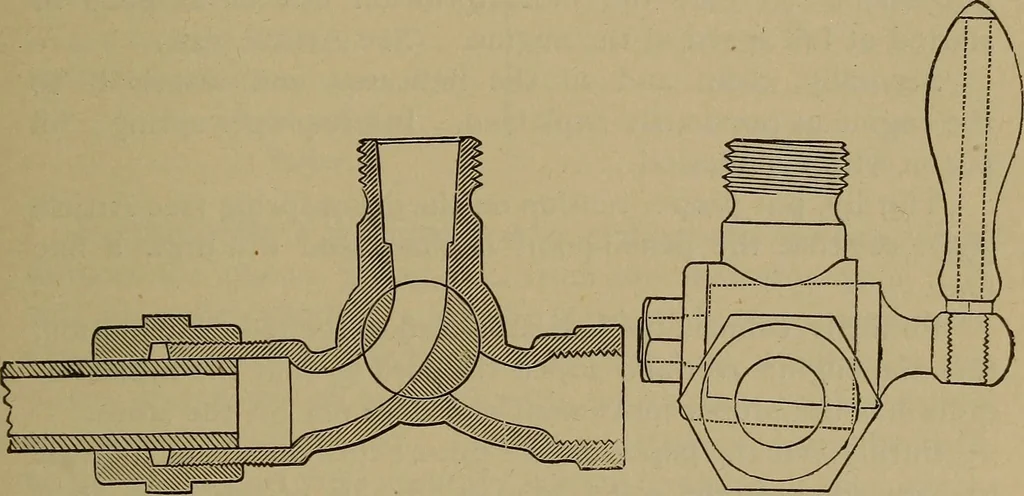

the Cylinder.—Holes for the indicator are drilled in the clearance-spaces atthe ends of the cylinders, in such a position that they are noteven partially choked by any motion of the piston. Theseholes are fitted for connection to half-inch pipe: they arelocated preferably in horizontal cylinders at… … Fig. 255.—Section of Crosby Three-way Cock. Fig. 256.—Elevation of CrosbyThree-way Cock. dicator-cocks are usually put in the cylinders by the makers ofthe engine, but in case they have to be drilled great care mustbe exercised that no drill-chips get into the cylinder. This maybe entirely…
