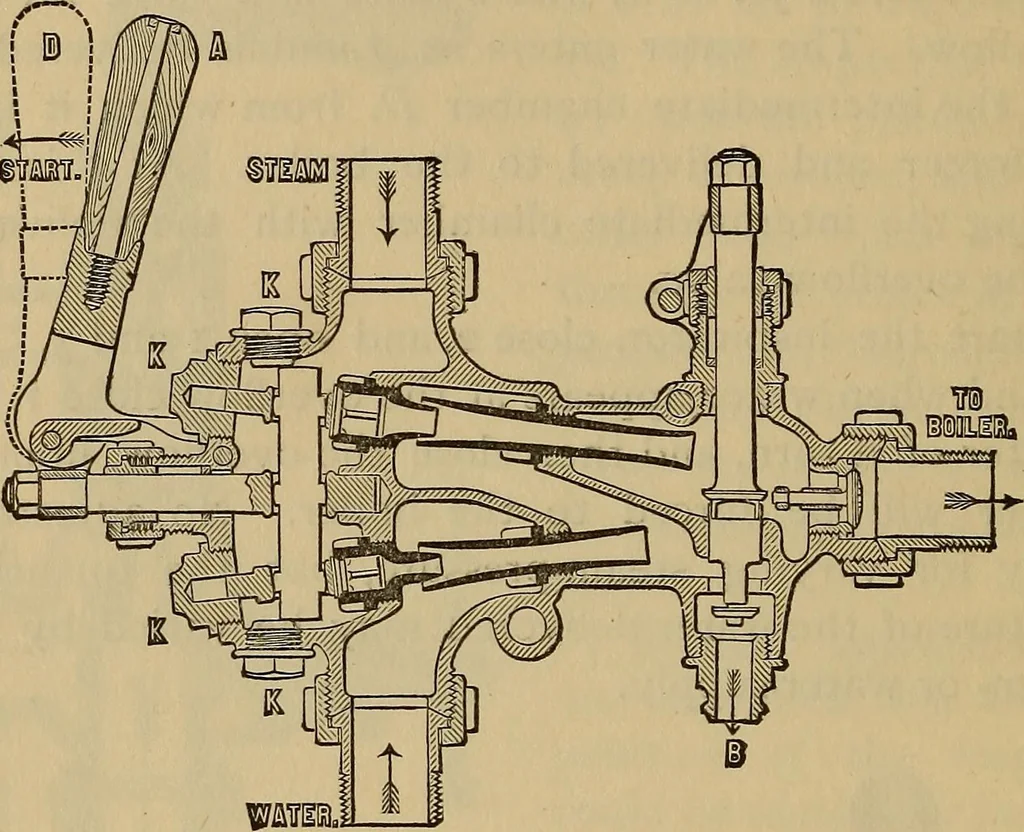

KiG. 35«. The Korting injector is shown by Figs, ^^a and 35<5. Thearrangement and action of the parts is evident without detailed 158 THERMODYNAMICS OF THE STEAM-ENGINE. description. The handle is moved a short distance till thelower or forcer valve, which opens first, has given steam to… … Fig. 3s3. pulled back as far as it will go. The overflow to the inter-mediate chamber closes when the forcer is started. The Hancock inspirator is also arranged to work by onecontinuous motion of a handle, when it is applied to loco-motives. Tests of Injectors.—The table opposite gives the…
