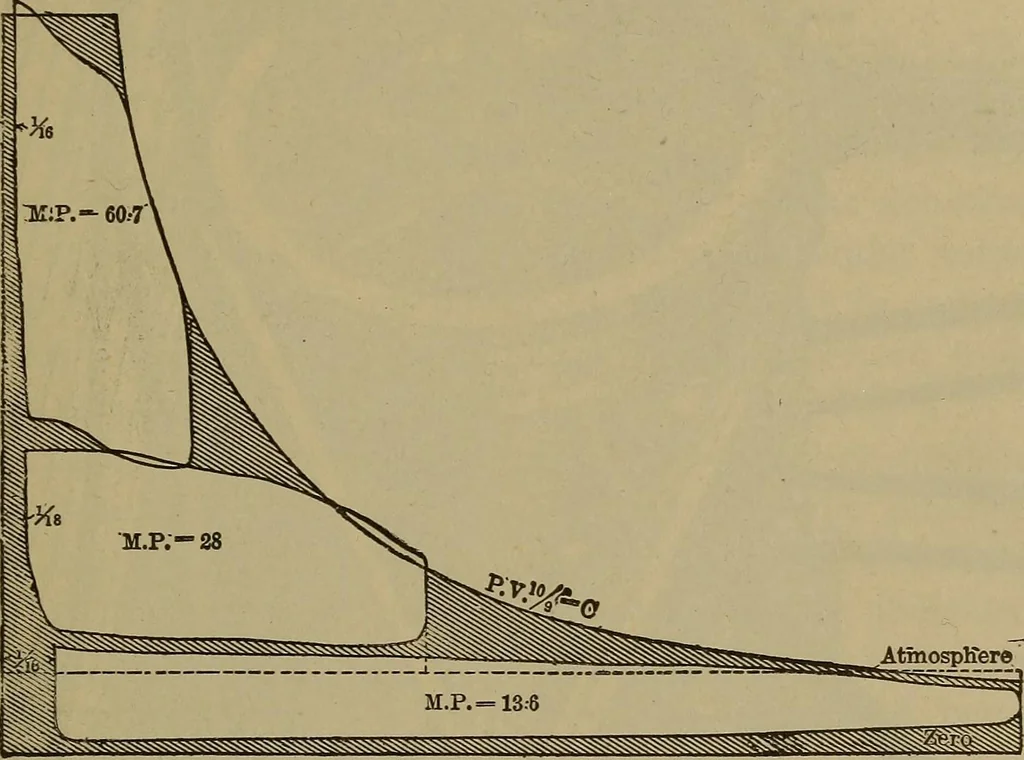

f cut-off corresponding to boiler-pressure anhyperbola is drawn as has been explained, and the area sur-rounding the diagrams is shaded. The work done in the threecylinders can be computed from the diagram as though donein one only. * See Thurstons Engine and Boiler Trials, page 202. 55 4-] THE… … Fig. 270.—Combined Diagram from Triple-expansion Engine. In such a case, shown by Fig. 271 the ordinates will be asbefore proportional to the pressures per square inch acting onthe piston, but the abscissae will correspond to distances moved
