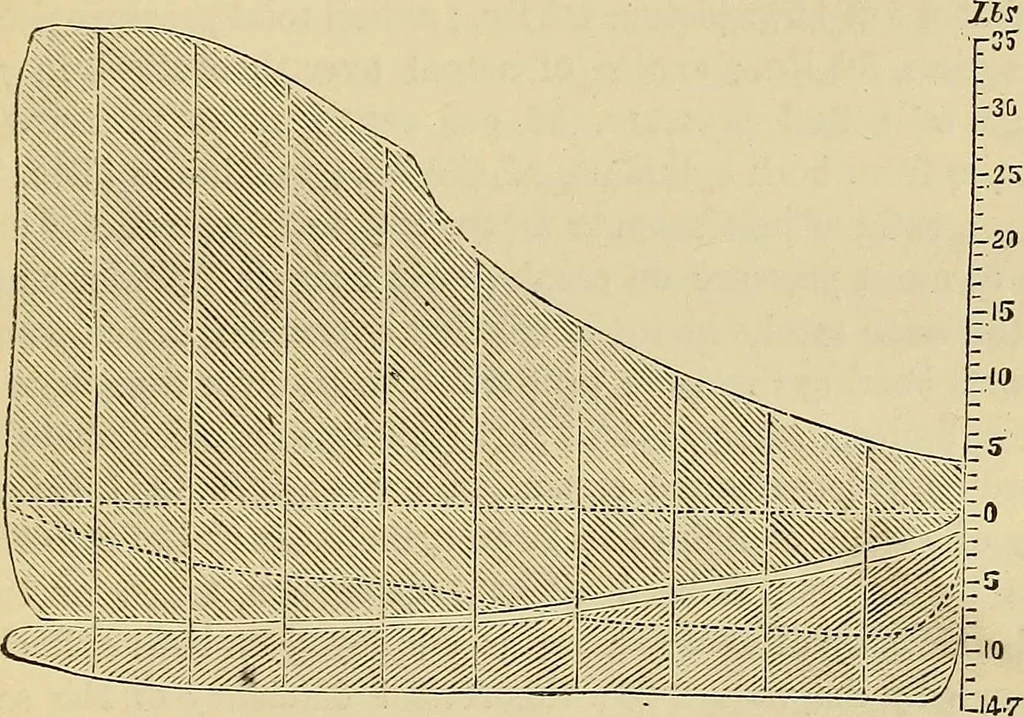

n figs. 35 and 36 we have diagrams taken simultaneouslyfrom the top of the small cylinder and the bottom of the largeone, in the double-cylinder engines of the Lambeth Water-works, designed by Mr. Thomson—the high-pressure diagrambeing placed above, and the low-pressure diagram below, with asmall… … DIAGRAMS FROM DOUBLE-CYLINDER ENGINES, LAMBETH WATER-WORKS.(TAKEN SIMULTANEOUSLY FROM TOP OF SMALL CYLINDER AND BOTTOM OF J.ABGH CYLINDER.) ment between this bottom and the top of the diagram what isthe pressure of the steam on the small piston at every part ofits stroke. The most material of the…
