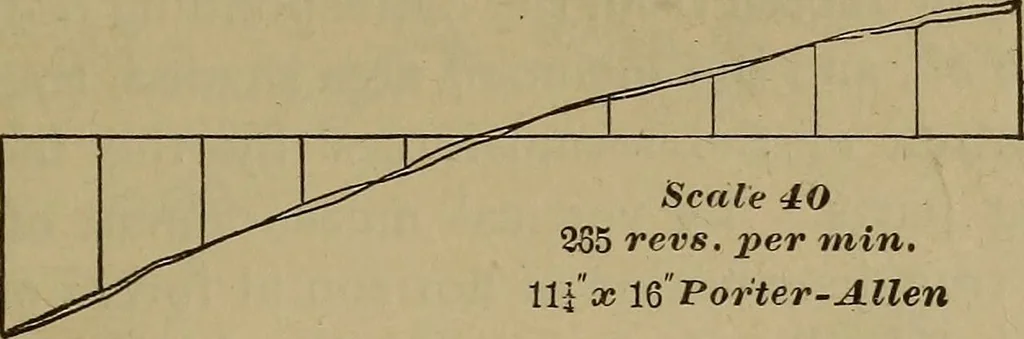

ndicator-card, the force persquare inch of piston-area is required. This is best obtainedby getting the weight-ratio or the weight of reciprocating partsper square inch of piston-area. This multiplied by the scale ofthe inertia-diagram gives the engine-scale or scale of pounds per 438-]… … Scale 40revs, per min. Hi as 1Q Porter- Allen Fig. 293.—Inertia-diagram.
