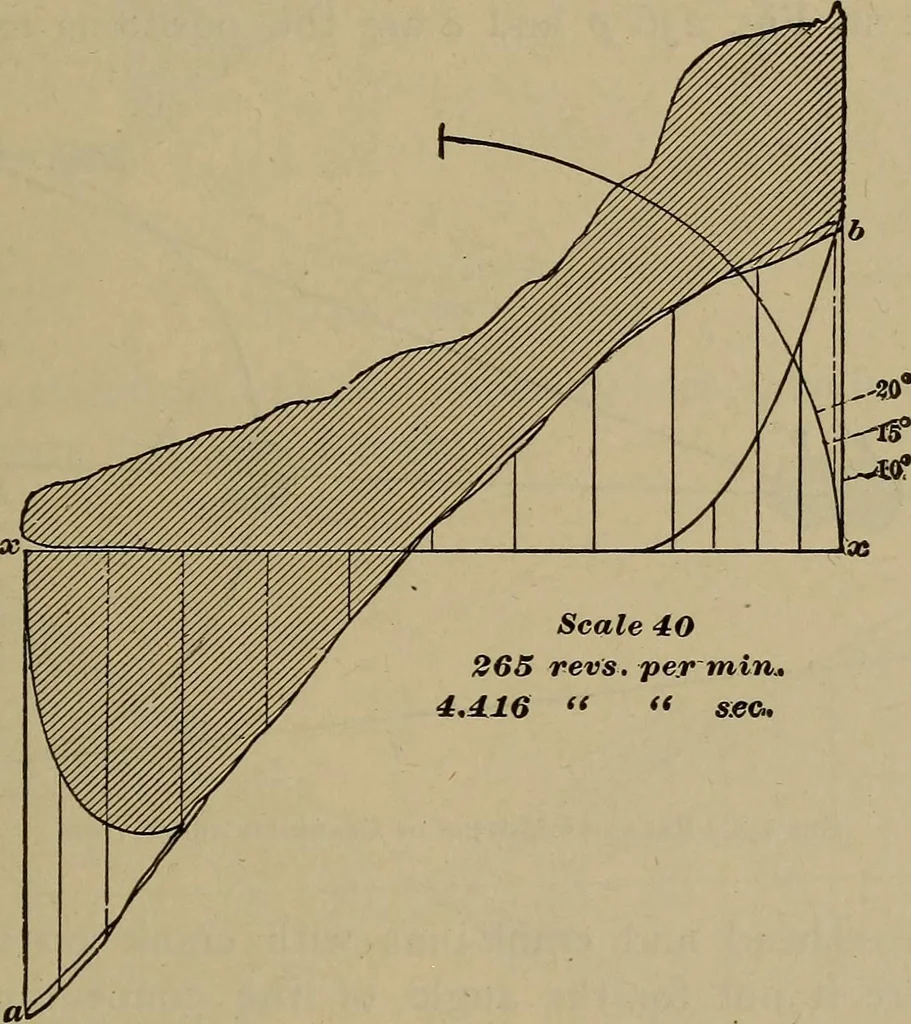

Scale 40revs, per min, llix IQrorter-zAllen Fig. 234.—Inertia-diagram. … Scale 40265 revs, permin^4,4.16 s.eo. Fig. 235.—Inertia and Indicator Diagrams. 80 spring and a one-pound weight. Hence the diagram-scaleis 40. But for this engine the weight-ratio was 3. Hence40 X 3 = 120 is the engine-scale. Having, now, this inertia-diagram (Fig. 234) whose engine-scale is 120,…
