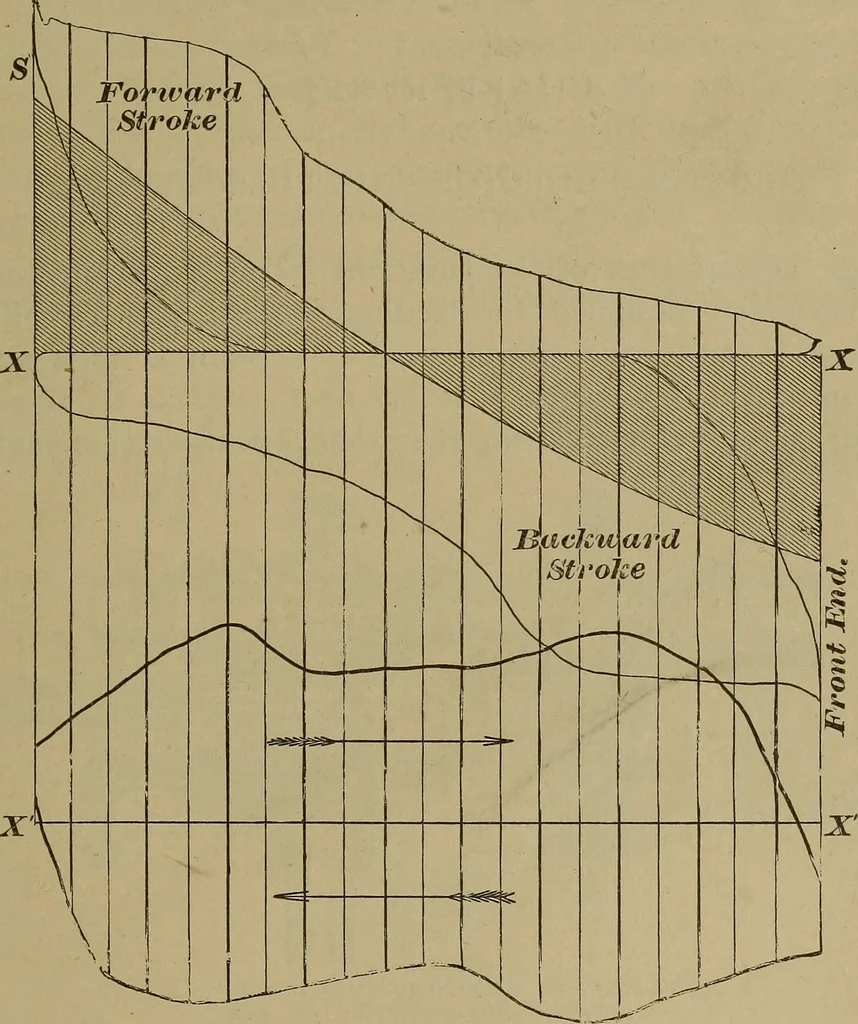

inertia curves may be drawn on an indicator-card arranged as shown in Fig. 299. Here the back-strokesteam-card has been drawn inverted and in contact with the for-ward card in its normal position, the two back-pressure linesbeing made coincident and used as the neutral inertia line. §438.]… … Fig. 299.—Combined Diagrams. at the crank-pin are thus more clearly revealed for both strokes,and the areas above and below XX respectively, give the actualwork on the crank-pin for forward and return strokes. CHAPTER XXI. THE STEAM-INJECTOR—THE PULSOMETER 439. Description of the Injector.—The…
