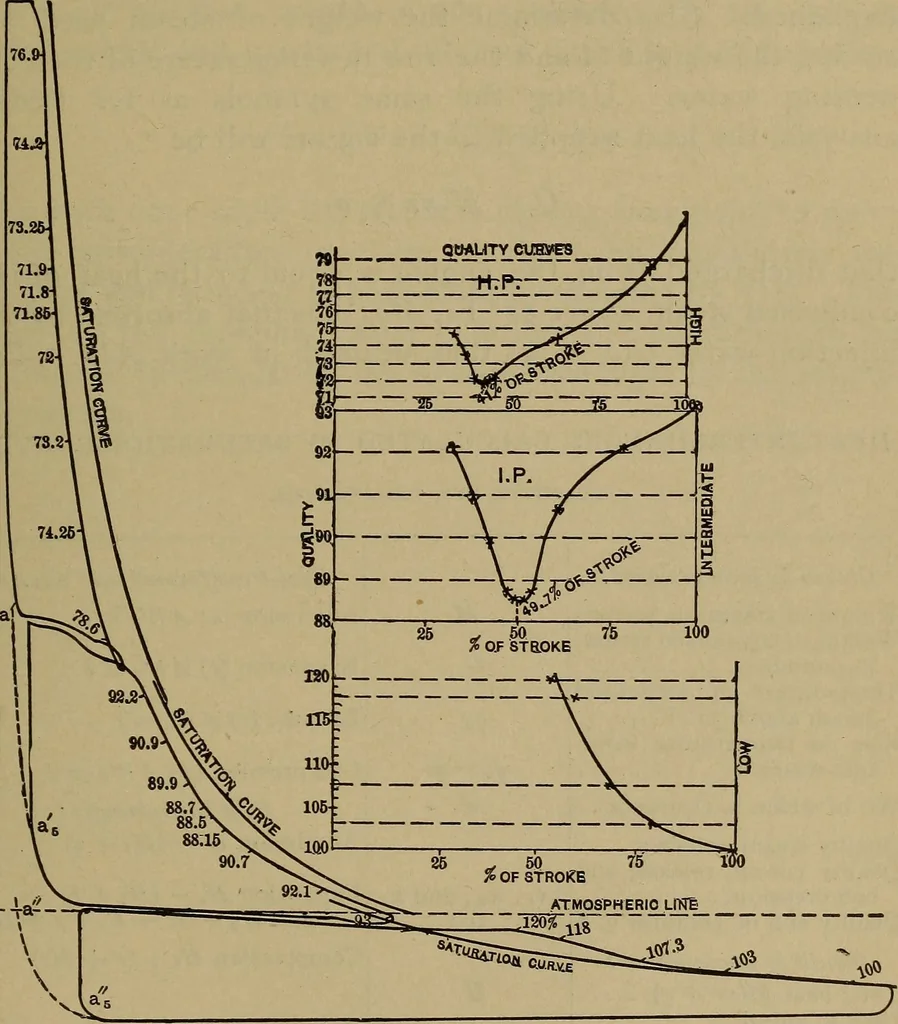

curveshowing the variation of quality may be laid off as shown inthe lower portion of Fig. 226a. The comparative quaUty during compression can beobtained in a similar manner by comparing the volume duringcompression with that of an equal volume of dry and saturatedsteam. §431-] METHODS OF TESTING… … Fig. 2263. volume of water entrained is neglected; such errors are, how-ever, exceedingly small. Fig. 226^ shows the saturation-curves of a combined diagram reduced from cards taken onthe Sibley College experimental engine. It will be noticedthat the saturation-curve is not continuous for the three…
