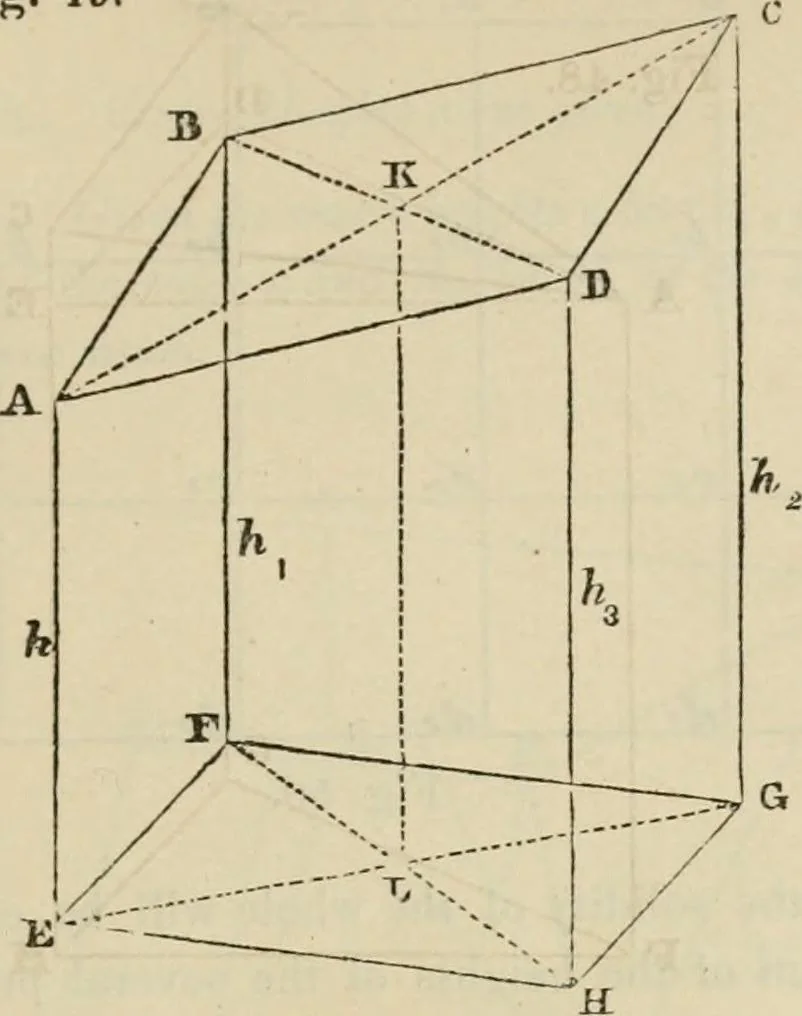

The samereasoning would apply, if the lower end also were truncated. Hence,for the solidity of the Avhole prism, whether truncated or not, we have S=AXhih + h,+ h.). 116. Problem. Given the edges h, h^, hn, and A3, to Ji7id tUsolidity S of a vertical prism, ivheiher truncated or not, whose… … prisms AFH and CFH. The horizontal section of each of theseprisms will be ^ A, and if A, h^, h^, and h^ represent the edges to whichthey are attached in the figure, we have for their solidity (§ 115)A FH =^A X k i^i-^ h + h). and CFH = ^A X ^ (^i + h +^g). Therefore, the whole prism will have for…
